NuTone 1000 Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 1000 Range Hood Parts

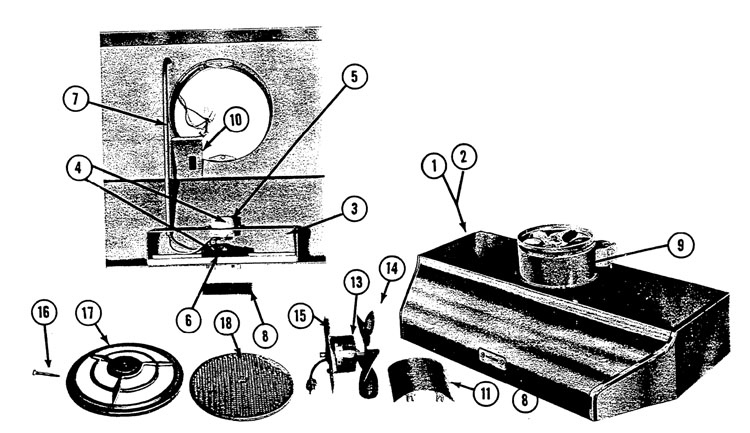

NuTone 1000 Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $1.48
0HCK44 Cord Kit with 6' cord and plug $13.93
13S26750SER Motor - #JA2C271 JA2C134, CCW, Shaft Size 3/4 " $105.08
14S11805000 Fan Blade - Metal, 5 Blade, CCW $16.29
15S11829000 Motor Bracket $8.51
1611245206 Grille Screw - (1/4" X 20" X 2") White $1.26
18S99010042 AluminumFilter - (9 1/2") Diameter $9.88
