Kenmore 50647 In-Line Blower Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Kenmore 50647 In-Line Blower Range Hood Parts
Kenmore 50647 In-Line Blower Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40

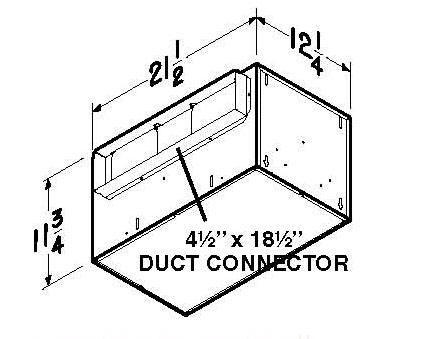

* HLB6 Complete New Unit
This product has been discontinued
0 HCK44 Cord Kit with 6' cord and plug $20.70
1 S99020273 Blower Wheel (2 Required) $111.60
2 S99080488 Motor $284.82
3 S97016793 Blower Assembly, Complete - Includes Scroll Assembly, Blower Wheels, Inlet Rings, Motor, Motor Mounting Bracket, Rubber Isolators, and Hardeware $719.10
4 S97014728 Mounting Bracket (2 Required) 1 left $18.00
5 S99150415 Screw, 8-18 x ¼ (18 Required) $27.26
6 S98005512 Wiring Plate $27.26
7 S99150471 Ground Screw, 10-32 x ½ (2 Required) $18.00
8 S98005513 Wire Box Cover $1.80
9 S99400035 Strain Relief Bushing
This product has been discontinued
10 S97006039 Wire Harness $33.84
11 S99260477 Nut, ¼-20 (12 Required) 1 left $18.00
12 S97014745 Scroll Assembly (2 Required)
This product has been discontinued
13 S98009399 Inlet Ring (2 Required)
This product has been discontinued
14 S97014794 Motor Mounting Bracket
This product has been discontinued
15 S99100497 Rubber Isolator (4 Required) $27.26
16 S99160380 Screw, 10-24 x 7/8 (4 Required)
This product has been discontinued
17 S99250399 Washer (4 Required)
This product has been discontinued
18 S99250254 Washer (4 Required) $27.26
19 S93260456 Nut, Hex Flange 3/8-16
This product has been discontinued
20 S98009461 Scroll Mounting Channel
This product has been discontinued
21 S98009464 Access Panel $59.22
22 S99420470 Access Panel Nut (4 Required) $27.26
23 S99150472 Access Panel Mounting Screw (4 Req.)
This product has been discontinued
24 S99150591 Screw, 10-16 x 7/8 (4 Required)
This product has been discontinued
25 S97016791 Hanger Kit $128.78
26 S98009449 Duct Connector (2 Required) $27.26
27 S97014822 Damper Flap Assembly (2 Required) $27.26
28 S423 Transition 4.5 x 18" to 10" Round 2-Req. $162.00
