IronAway UD-42 Ironing Center Parts ADA Aproved, Swival, Adjustable heights, Electrical

Listed below are the parts available for this model.

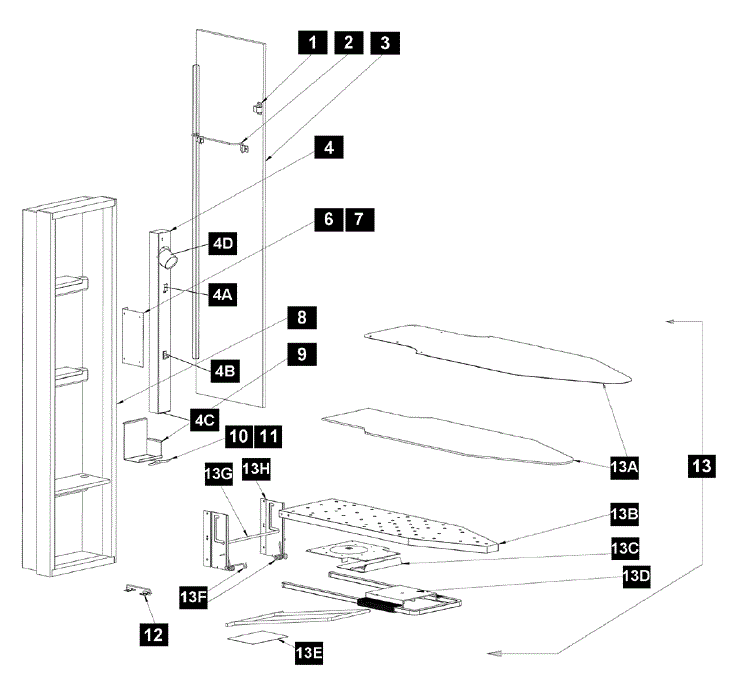

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

IronAway UD-42 Ironing Center Parts ADA Aproved, Swival, Adjustable heights, Electrical
IronAway UD-42 Ironing Center Parts ADA Aproved, Swival, Adjustable heights, Electrical breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  000269 Maytag Premium Steam Iron $149.99
13A 001500 Cover & Pad Set $49.75
  UD42WDU Complete New Unit. Model comes with a Maple Veneer Door Left Hinged. For Additional Options, Contact Customer Service $567.22
1 001504 Roller Catch Assembly $9.00
3A 001502 49” Hinge Assembly $31.88
3B 000670 Flat Maple Veneer Wood Door NO Hinges 15” x 60 5/8” x ¾” $86.63
3C 000671 Flat Maple Veneer Wood Door W/ Hinge 15 x 60 5/8 $118.50
3F 000655 Raised Maple Door w/ Hinge 15” x 60 5/8” $223.58
3G 000663 Raised Maple Panel Door No HINGE 15 x 60 5/8 $255.45
3H 000740 Flat White Door No Hinge 15” x 60 5/8” $112.11
3I 000741 Flat White Door with Hinge 15” x 60 5/8” $143.99
3J 000755 Raised White Door w/Hinge 15” x 60 5/8” $255.45
3K 000756 Raised Panel White Door NO/ Hinge 15” x 60 5/8” $223.58
3D 000435 Iron Cord Clip $2.50
4 001576 UD-42 Raceway w/Spotlight Assembly $232.50
4B 000231 White Disconnect Switch $16.50
4C 000230 White Electrical Outlet $12.00
4D 000224 Snap-In Lamp Holder $11.25
3E 000802 Swivel Mechanism $136.00
9 001542 Hot Iron Rest Assembly $56.42
10 001540 Cord Wrap Assembly $13.26
12 001548 Iron Support Assembly $12.36
13 001525 42” Swivel Board Assembly $449.97
13B 000843 42” Ironing Board Cool Gray $97.50
13B 001550 42” Ironing Board, Cover & Pad Set (13A & B) $141.00
13F 001549 Swivel Board Spring Assembly – L&R $37.50
13H 000881 Swivel Bracket – Pair $45.00
  001530 Touch up Paint Kit $15.00
