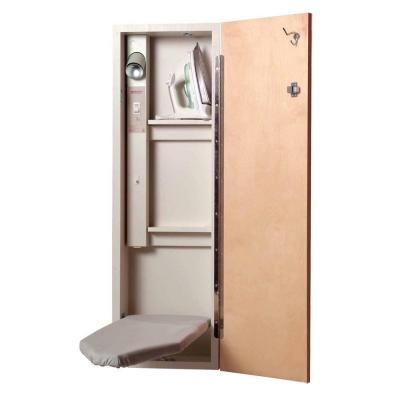

IronAway ESP-342 Ironing Center Parts

Listed below are the parts available for this model.

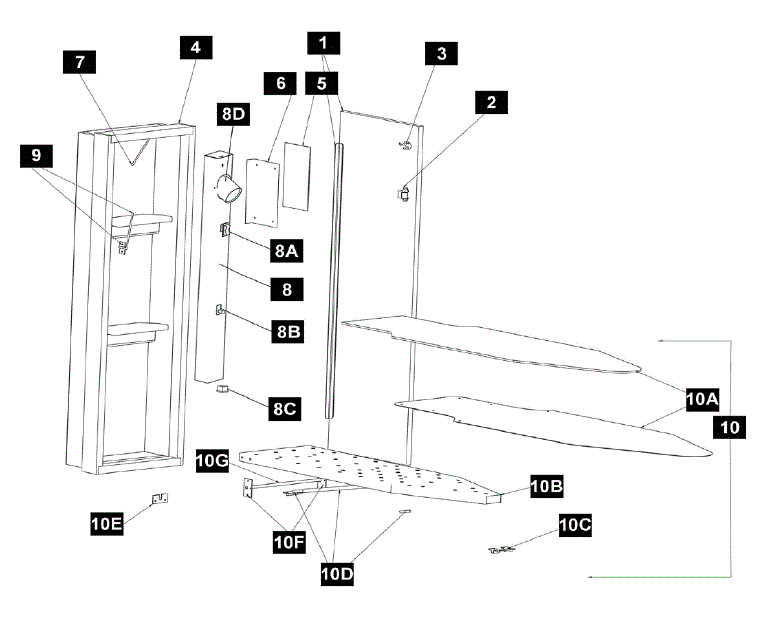

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

IronAway ESP-342 Ironing Center Parts
IronAway ESP-342 Ironing Center Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1A 001503 39” Hinge Assembly $31.88
2 001504 Roller Catch Assembly $9.00
7 001509 Right Iron Retainer Assembly $9.00
8B 000231 White Disconnect Switch $16.50
8C 000230 White Electrical Outlet $12.00
8D 000224 Snap-In Lamp Holder $11.25
9 001539 LH Board Retainer Assembly $9.00
10 001518 42” Board Assembly $187.50
10A 001500 Cover & Pad Set $49.75
10B 000843 42” Ironing Board $97.50
10C 001508 Leg Bracket Assembly $16.00
10D 001515 Single Leg Assembly $47.50
  000819 2” x 5/16” Insert E/NE $9.00
10F 001513 V5 Pivot Plate Assembly $13.50
10G 000817 12 ¾” x 5/16” Axle Rod for E/NE $11.25
