IronAway E-42 Ironing Center Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

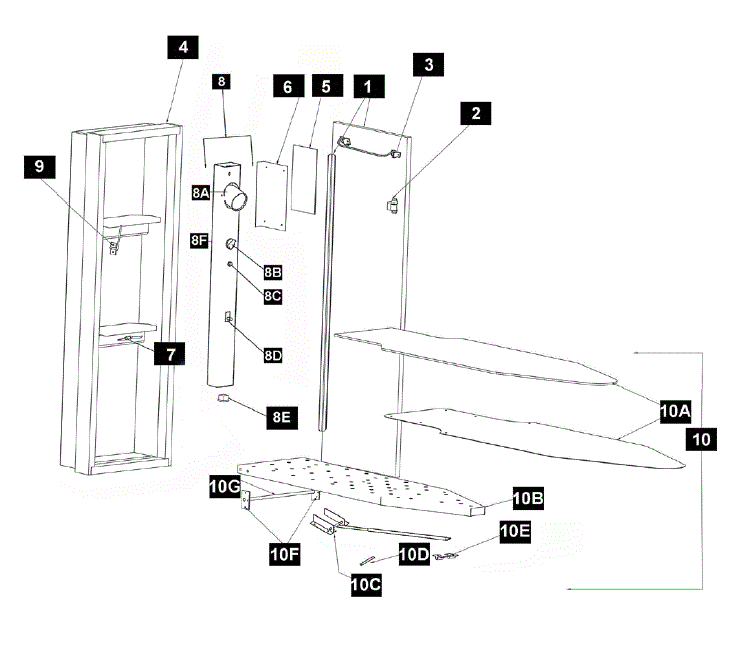

IronAway E-42 Ironing Center Parts breakout large

Part Key	Part Number	Description	Unit Price
10A	001500	Cover & Pad Set	$49.75
	E42WDU	Complete New Unit. Model comes with a Maple Veneer Door Left Hinged. For Additional Options, Contact Customer Service	$452.28
	001530	Touch up paint Kit	$15.00
10B	000843	42” Ironing Board Cool Gray	$97.50
	001550	42” Ironing Board, Cover & Pad Attached	$141.00
10C	001568	Bottom L & R Leg Bracket Assembly	$22.50
10D	001515	Single Leg Assembly	$47.50
10E	001508	Leg Holding Bracket Assembly	$6.00
10F	001513	V5 Pivot Plate Assembly	$13.50
10G	000817	12 ¾” x 5/16” Axle Rod for E/NE	$11.25
1	000669	E-42 Flate Maple VaneerWood Door W/ Hinge 15 x 52	$70.32
1A	001503	39” Hinge Assembly	$31.88
1B	000668	Flat Maple Vaneed Wood Door NO hinge 15” x 52” x ¾” Wood Door	$38.45
2	001504	Roller Catch Assembly	$9.00
3	001541	Garment Bar Assembly	$18.75
7	001540	Cord Wrap Assembly	$13.26
8	001575	E-42 Raceway Assembly	$232.50
8B	000265	White Timer Knob	$15.84
8C	000226	Pilot Light	$9.00
8D	000231	White Disconnect Switch	$16.50
8E	000230	White Electrical Outlet	$12.00
8F	000218	60 Minute Timer – Mallory Timer M204	$75.00
9	001539	LH Board Retainer Assembly	$9.00
	000269	Maytag Premium Steam Iron	$149.99
	000224	Snap-In Lamp Holder	$11.25
	000808	2 5/8 inch x 5/16 inch Axle Rod for E/NE	$6.50
	000854	Single Male Leg	$11.25
	000855	Single Female Leg	$11.25
	001508	Leg Holding Bracket Assembly	$6.00
