IronAway AE-46 Ironing Center Parts, Swival Board, Light, Timmer, Plug, Auto Shut off

Listed below are the parts available for this model.

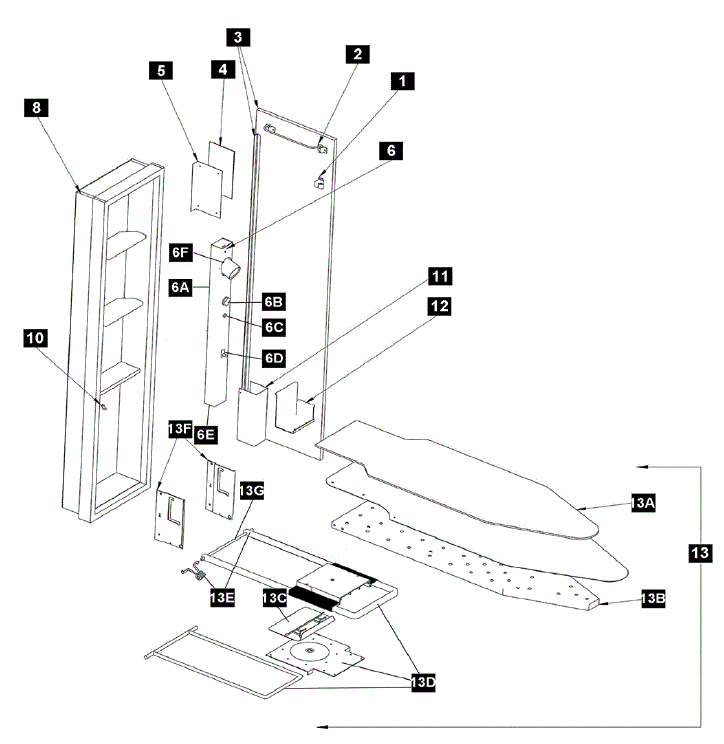

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

IronAway AE-46 Ironing Center Parts, Swival Board, Light, Timmer, Plug, Auto Shut off
IronAway AE-46 Ironing Center Parts, Swival Board, Light, Timmer, Plug, Auto Shut off breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  000269 Maytag Premium Steam Iron $149.99
13A 001500 Cover & Pad Set $58.50

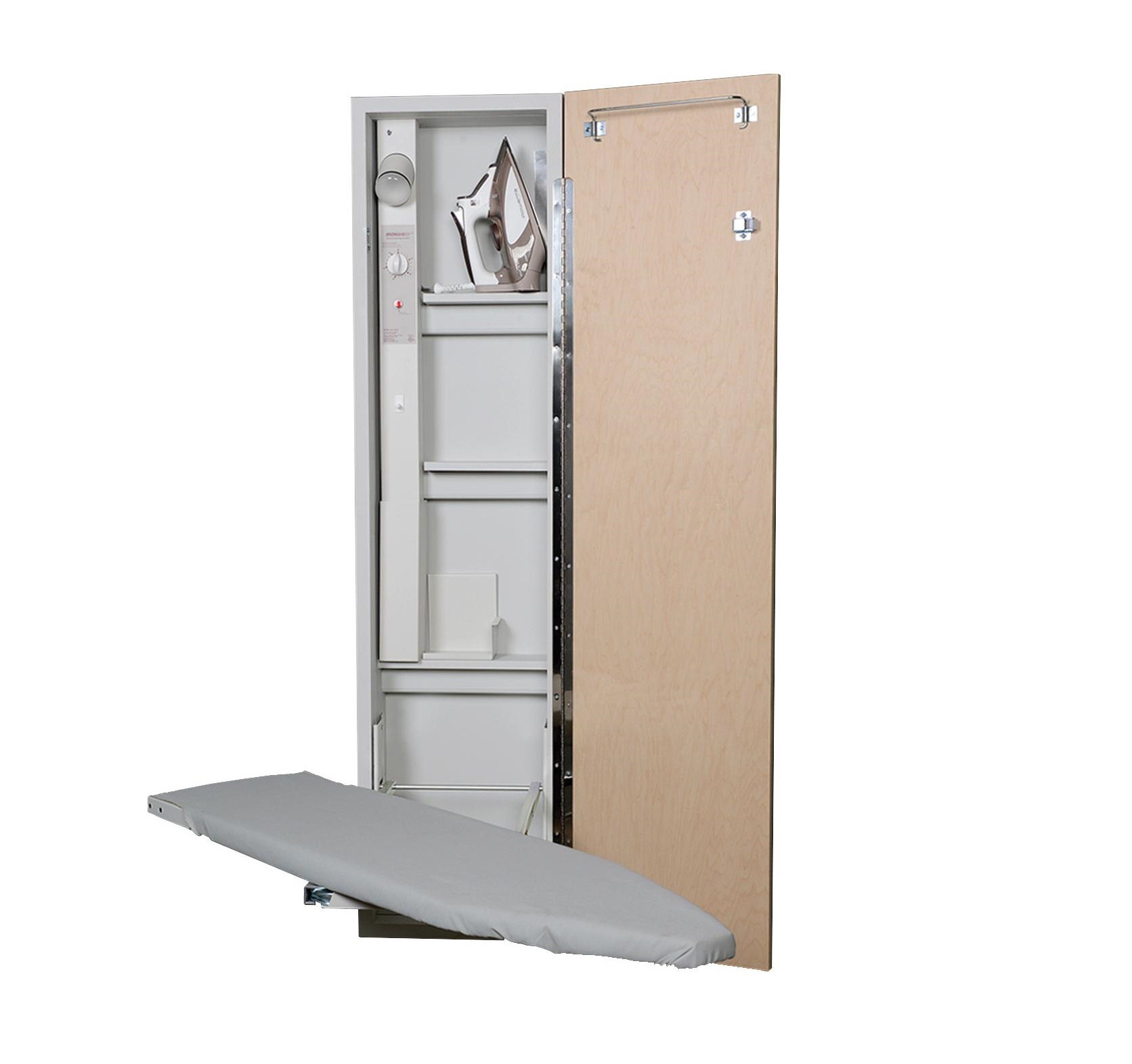

1 AE46WDU Complete New Unit. Model comes with a Maple Veneer Door Rigt Hinged. For Additional Options, Contact Customer Service $598.42
1 001504 Roller Catch Assembly $9.00
2 001541 Garment Bar Assembly $18.75
3A 001502 49” Hinge Assembly $31.88
3B 000670 Flat Maple Vaneer Wood Door -(no hinge) 15” x 60 5/8” x ¾” $86.63
3 000671 AE-46 Flat Maple Vaneer Wood Door W/Hinge 15 x 60 5/8 $118.50
3C 000655 Raised Maple door 15” x 60 5/8” (no hinge) $223.58
3D 000663 Raised Maple Door w/ Hinge 15” x 60 5/8” $255.45
3E 000740 Flatt White Door 15” x 60 5/8” (no hinge) $112.11
3F 000741 White Flat Door With Hinge 15” x 60 5/8” $143.99
3G New Part Raised White Door 15” x 60 5/8” (no hinge) $125.50
3H 000755 Raised White Door w/Hinge 15” x 60 5/8” $255.45
6 001572 AE46 Raceway Assembly $232.50
6A 000218 60 Minute Timer – Mallory Timer M204 $75.00
6B 000265 White Timer Knob $15.84
6C 000226 Pilot Light $9.00
6D 000231 White Disconnect Switch $16.50
6E 000230 White Electrical Outlet $12.00
12 001542 Hot Iron Rest Assembly $56.42
13 001543 46” Swivel Board Assembly W/ Cover $449.97
13B 000841 46” Ironing Board cool gray $97.50
13E 001549 Swivel Board Spring Assembly – L&R $37.50
13F 000881 Swivel Bracket Pair $45.00
13C 001613 Plastic Swivel Cover $9.00
  001530 Touch Up Paint Kit $15.00
