IronAway A-42 Ironing Center Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

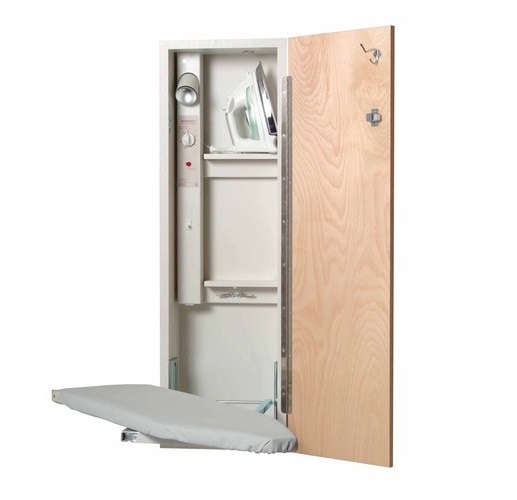

IronAway A-42 Ironing Center Parts

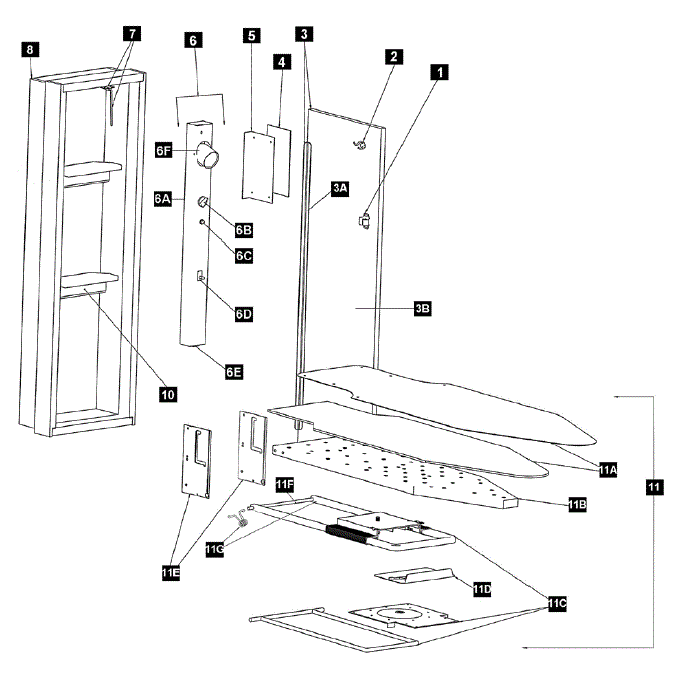

IronAway A-42 Ironing Center Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 AE-42 Complete New Unit. Comes with a Maple Veneer Door, (Slightly larger than the A-42) Left Hinged $503.02
11A001500 Cover & Pad Set $35.10
1001504 Roller Catch Assembly $5.40
3A001503 39” Hinge Assembly $19.13
6A000218 60 Minute Timer – Mallory Timer M204 $45.00
6B000265 White Timer Knob $8.16
6001526 Electric Raceway Compete (Includes parts 6F,6A, 6B, 6C, 6D, 6E) $119.67
6F000224 Snap-In Lamp Holder $6.75
6C000226 Pilot Light $5.40
6D000231 White Disconnect Switch $9.90
6E000230 White Electrical Outlet $7.20
7001509 Right Iron Retainer Assembly $5.40
10000154 Cord Wrap Assembly $7.96
11001525 42” Swivel Board Assembly $269.98
11B000843 42” Ironing Board $58.50
11E000881 Swivel Bracket – Pair $27.00
11F001524 Axle Rod/Swivel $2.70
11G001549 Swivel Board Spring Assembly – L&R $22.50
 001530 Touch up Paint Kit $15.00
 001505 Coat Hook $12.00
 000231 Cherry Switch $22.00
