Broan S80LU Bath Fan with Light/Night Light Parts

Listed below are the parts available for this model.

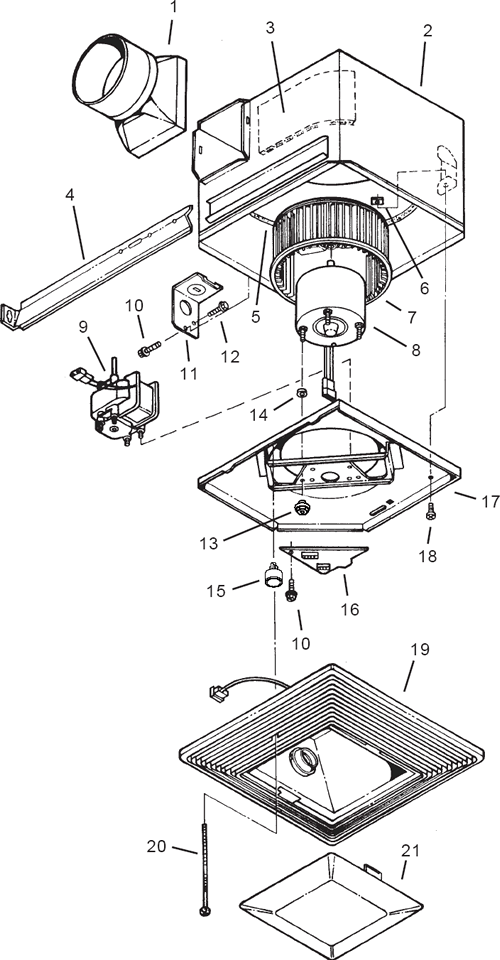

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan S80LU Bath Fan  with Light/Night Light Parts
Broan S80LU Bath Fan  with Light/Night Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1S97013349 4" Damper/Duct Connector
4S98003036 Mounting Bracket (4 req.) $1.89
7S99020270 Blower Wheel-S80lu $8.48
8S99080448 Motor (SEE S99080450 110CFM must order blade also S99020269)
8S97013569 Motor/Blower Assembly - (Includes Key Nos. 7,9,13,14,&15)
8S99080450 Motor for 110 (needs blade s99080450)
8S99020269 Blower Wheel for the 110 S99080450
13S99260567 Motor Mounting Nut $3.06
14S99100483 Motor Ruber Grommets $2.65
15S99420631 White Plastic Grille Nut (2 req.) $2.72
16S97013567 Outlet Box Cover with all Receptacles & Thermostats
20S99150565 Grille Screw - 2 Required (5" Long) $4.39
19S97013566 Grille Assembly - with Both Sockets ** (LIGHT LENS SOLD SEPERATE) grille 11.5 square
17S97013401 Motor Mounting Bracket & Plate $12.58
