Broan S80FLUE Bathroom Exhaust Fan/ Light Parts

Listed below are the parts available for this model.

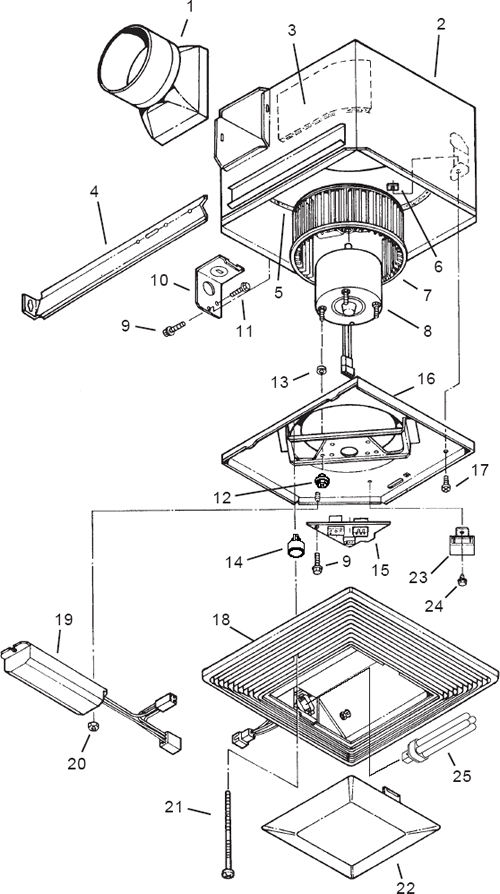

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan S80FLUE Bathroom Exhaust Fan/ Light  Parts
Broan S80FLUE Bathroom Exhaust Fan/ Light  Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S97013415 Motor Mounting Bracket & Plate $12.31
 S99100483 Motor Mounting Rubber $2.65
 S97016320 Ballast
 S99260567 Motor Mounting Nut $3.06
1S97013349 4" Damper/Duct Connector
4S98003036 Mounting Bracket (4 req.) $1.89
7S99020269 Blower Wheel
8S99080454 Motor $134.39
8S97016321 Motor/Blower Assembly - Includes Key Nos. (7,8,12,13,14,16,26 & 24) $161.62
14S99420631 White Plastic Grille Nut (2 req.) $2.72
15S97013568 Outlet Box Cover with Receptacles $16.45
18S97016319 Grille Assembly with both Sockets ** 1 left $62.52
21S99150565 Grille Screw - 2 Required (5" Long) $4.39
22S99110736 Light Lens $11.74
25S99271311 Bulb 26 Watt Fluorescent - S80FLUE-A $26.55
