Broan S150L Bathroom Exhaust Fan/Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan S150L Bathroom Exhaust Fan/Light Parts

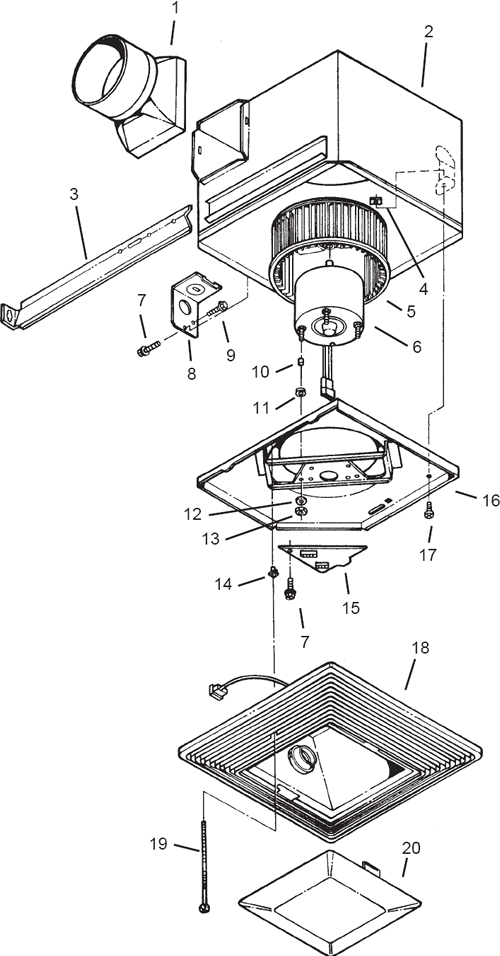

Broan S150L Bathroom Exhaust Fan/Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99100483 Motor Mounting Rubber
This product has been discontinued

  S99250254 Motor Mounting Washer $27.26
  S99260425 Motor Mounting Nut $2.40
1 S97013349 4" Damper/Duct Connector
This product has been discontinued

3 S98003036 Mounting Bracket (4 req.) $27.26
5 S99020269 Blower Wheel
This product has been discontinued

6 S99080474 Motor
This product has been discontinued

14 S99420631 White Plastic Grille Nut (2 req.)
This product has been discontinued

15 S97013567 Outlet Box Cover with all Receptacles & Thermostats
This product has been discontinued

16 S97013401 Motor Mounting Plate $19.30
8 S97014833 Complete Blower Assembly (Includes Key Nos. 5,6,10,11,12,13,14, & 16)
This product has been discontinued

18 S97013566 Grille Assembly - with Both Sockets **(no lens- grille 11.5 square
This product has been discontinued

19 S99150565 Grille Screw - 2 Required (5" Long) $27.26
20 S99110736 Light Lens 6 3/4 x 6 3/4 x 1
This product has been discontinued
