Broan S120FL Bath Fan with Light/Night Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan S120FL Bath Fan  with Light/Night Light Parts

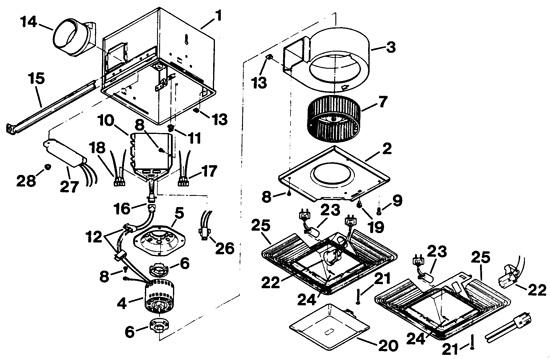

Broan S120FL Bath Fan  with Light/Night Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
  S97014516 Wire Cover Panel $1.94
1 S97009275 Housing $31.14
2 S97014513 Motor Mounting Bracket
This product has been discontinued

2 S99270961 Ballast $40.84
4 S99080274 Motor Modified (JA2M373N)cw $135.61
4 S97009800 Fan Assembly
This product has been discontinued

5 S95000963 Motor Cup
This product has been discontinued

6 S99100412 Motor Rubber (2 needed sold each)
This product has been discontinued

7 S99110735 Blower Wheel cw 5 3/4"h x 2.5w" x 5/16diam
This product has been discontinued

11 S99770040 Flourcent light socket $15.17
12 S97012025 Fan Motor Adapter Plug $27.26
14 S97003932 4 INCH DAMPER/DUCT CONNECTOR $27.26
15 S98003036 Housing Mounting Bracket $27.26
16 S97009287 Wire Harness $27.26
17 S99270479 Receptacal white $27.26
17 S99271204 Receptacle $4.43
18 S99270748 Receptacle,black $18.00
19 S99420631 White Plastic Grille Nut (2 req.)
This product has been discontinued

20 S99110736 Light Lens (sold seperate) 6 3/4 x 6 3/4 x 1
This product has been discontinued

21 S97010730 Flourcent bulb $68.63
21 S99150542 Grille Mounting Screw
This product has been discontinued

25 S97010732 GRILLE ASSEMBLY w/ both sockets and grille (no lens)
This product has been discontinued

26 S97010640 Receptacal $1.87
