Broan RM53000 Rangemaster Chimney Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan RM53000 Rangemaster Chimney Range Hood Parts

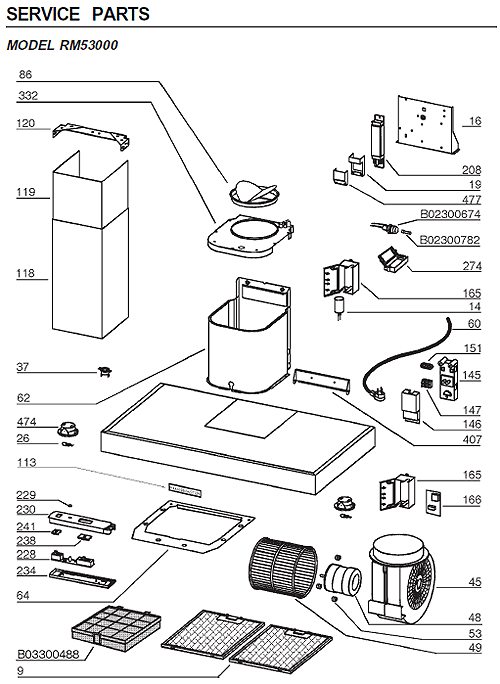

Broan RM53000 Rangemaster Chimney Range Hood Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
 SB03295016 Non-Ducted Plenum / Air Diverter $8.93
 SB03295018 Non-Ducted Transition - 6" to 5" Round $2.74
 S99091031 Logo - will read "Broan Elite" $5.20
 SB080810501 Parts Bag - Includes Mounting Bracket, Mounting Screws, & Upper Flue Bracket $21.51
9SB08087294 GREASE FILTER $12.28
9SB03300488 Non-Ducted Filter 8-7/8" X 9-1/2" (optional) ** $56.95
14SB02300233 CAPACITOR $19.76
16SBE3346354 ELECTRICAL BOX SUPPORT $9.41
19SB03295005 TRANSFORMER PROTECTION $10.91
26SB02300891 Halogen Bulb (G4 Base, 12 Volt, 20 Watt) $9.12
37SB02300787 HEAT SENTRY $35.89
45SBW0000019 BLOWER HOUSING $55.98
48SB02310203 MOTOR $135.00
48SB06002013 BLOWER ASSY (KEY #'S 45, 48, 49 & 53) $204.50
49SB03295076 Wheel $22.68
53SB03204177 RUBBER WASHER $2.97
60SB02300249 FEEDER CABLE $14.56
62SB08091462 BLOWER MOUNTING COVER $21.06
86SB08088378 DAMPER/DUCT CONNECTOR WITH FLAPS AND SPRINGS $9.66
113SB03202433 Rangemaster Logo (replaced by V03493) $4.88
118SBE3347192 LOWER FLUE F/RM53000 $71.23
119SBE3347193 UPPER FLUE F/RM53000 $95.99
120SB08091367 Upper Flue Mounting Bracket $15.00
145SB032920170 FEEDER CABLE CONTN BOX $8.50
146SB032920180 CABLE CONNECTION BOX COVER $0.90
147SBR2300132 4 WIRE TERMINAL BLOCK $10.24
151SB032920200 ELEC BOX WIRES STOP $0.59
165SB03295008 ELECTRICAL BOX WITH COVER $13.73
166SB08086668 HEAT SENTRY RELAY PM390HS $71.51
208SB02300783 Transformer $23.96
228SB08086279 SWITCH CONTROLS BOARD $9.94
229SB03201014 LAMP LENS $5.29
230SB03295075 SWITCHBOARD BOX COVER $2.61
234SB03295072 CONTROL BOARD BOX $7.07
238SB03295074 Slide Button For Motor Switch $0.68
241SB03295073 Slide Button For Light Switch $1.24
274SB03295035 JUNCTION BOX $6.82
332SB03295009 COVER $15.37
407SBE3344985 BLOWER SUPPORT BRACKET $11.39
474SB02300791 Lens & Chrome Ring w/Socket & Lamp Hsg $14.54
477SB03295006 TERMINAL COVER $7.85
0SB02300782 Fuse 4-Amp. 5mm X 20mm $9.82
0SB02300674 Fuse Holder $20.07
