Broan RM326H 1200Cfm Blower Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan RM326H 1200Cfm Blower Parts

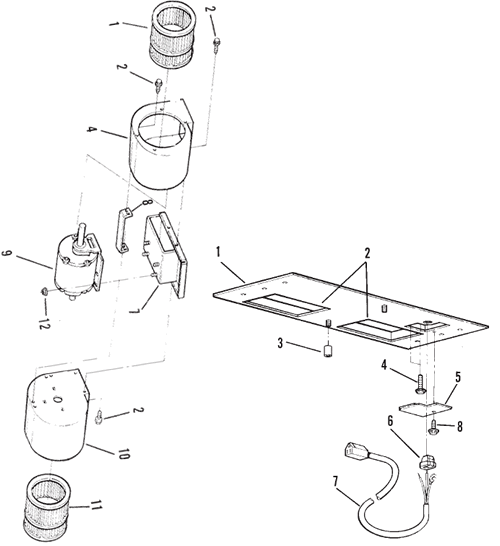

Broan RM326H 1200Cfm Blower Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1S97014247 Motor Mount (for Double Shafted Motor and Two Blower Wheels) $25.63
2S98003366 Scroll Brace - 2 Required (for Double Shafted Motor and Two Blower Wheels)
This product has been discontinued

3S99260477 Nut used to Attach Motor to Motor Mount - 1/4" - 20 - 4 Required (for Double Shafted Motor and Two Blower Wheels) $18.00
4S97014160 Rough-In Plate Only (for Double Shafted Motor and Two Blower Wheels) $67.00
5S99100387 Polyfoam that is Attached to Rough-In Plate (for Double Shafted Motor and Two Blower Wheels) $3.49
6S99380605 Barrel Nut used to Attach Blower Assembly to Rough-In Plate (for Double Shafted Motor and Two Blower Wheels) $13.12
7S98003370 Outlet Box Cover (for Double Shafted Motor and Two Blower Wheels) $10.85
8S99170245 Screw Used to Attach Outlet Box Cover to Rough-In Plate - #8-18 x 3/8" (for Double Shafted Motor and Two Blower Wheels) $18.00
9S99100382 Strain Relief on Power Cord (for Double Shafted Motor and Two Blower Wheels) $0.72
10S99440033 Power Cord $43.20
11S97018820 Blower Assembly - Includes Motor, Capacitor, Blower Wheel, & Scroll Housings (for Single Shafted Motor and One Blower Wheel) $322.20
12S99080645 Motor (for Single Shafted Motor and One Blower Wheel) $136.80
13S99271379 Capacitor (for Single Shafted Motor and One Blower Wheel) $21.60
14S97018828 Motor Hardware Bag - Includes Motor Grommet & Screws (for Single Shafted Motor and One Blower Wheel) $6.05
15S98003370 Outlet Box Cover (for Single Shafted Motor and One Blower Wheel) $10.85
16S99400060 Strain Relief on Power Cord (for Single Shafted Motor and One Blower Wheel) $3.82
17S99440033 Power Cord (for Single Shafted Motor and One Blower Wheel) $43.20
18S97012112 Motor/Blower Assembly see s97018834
This product has been discontinued

19S97018834 Blower Assembly (for Double Shafted Motor and Two Blower Wheels)
This product has been discontinued

20S99020122 Blower Wheel CW (for Double Shafted Motor and Two Blower Wheels) $68.71
21S99020121 Blower Wheel CCW (for Double Shafted Motor and Two Blower Wheels) $90.90
22S97002321 Scroll Housing Left (for Double Shafted Motor and Two Blower Wheels) $28.26
23S97002320 Scroll Housing Right (for Double Shafted Motor and Two Blower Wheels) $28.26
24S99111448 Scroll Housing - Motor Side (for Single Shafted Motor and One Blower Wheel) $40.32
25S99111447 Scroll Housing - Inlet / Blower Wheel Side (for Single Shafted Motor and One Blower Wheel) $36.14
26S97011215 Motor
This product has been discontinued

27S97018167 ROUGH-IN PLATE $90.40
28S97018824 RM326H ROUGHT IN KIT $339.30
29S97018827 MOUNTING PLATE ASSEMBLY newest verision $39.13
30S99580015 IN-LINE DAMPER - 10INCH ROUND $59.80
