Broan QTXE150 Ventilation Bathroom Fan Parts

Listed below are the parts available for this model.

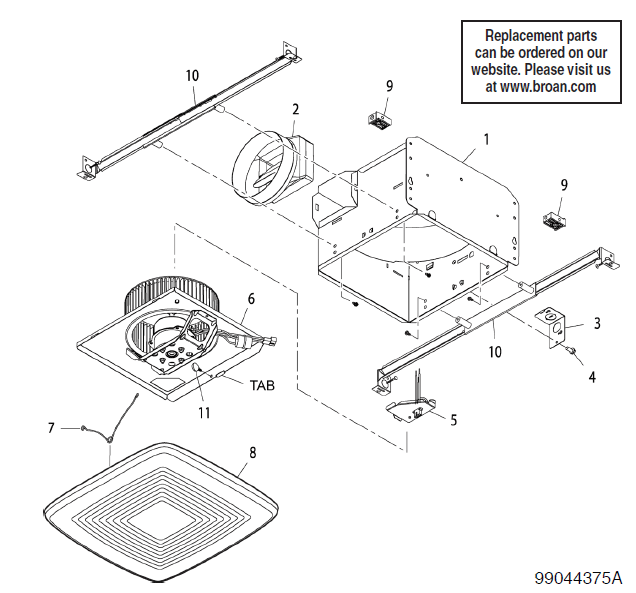

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan QTXE150 Ventilation Bathroom Fan Parts
Broan QTXE150 Ventilation Bathroom Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  QTXE150 Complete New Unit $217.98
  SPKACC Blue Tooth Model ...add sound to your fixture
This product has been discontinued

1 S97020009 Housing for D.E F $50.76
2 S97018331 Duct Connector for D,E,F 6" $59.22
2 S97016450 Damper/Duct Connector - 6" (version A,B, C) $27.26
1 S97016466 Housing A,B, C $59.22
3 S98010102 Electrical Knockout Plate For Top of Housing $33.84
5 S97016932 Wire Harness Assy (Replaced by S97018010)
This product has been discontinued

5 S97018010 Wire Panel Cover & Harness Assembly - Includes Receptacle for Fan $33.84
5 S97018447 Wire Panel/ Harness Assembly (version D,E,F) $27.26
6 S97020011 BLOWER ASSEMBLY - MOTOR, BLOWER WHEEL, & MOUNTING PLATE Version "D" $210.60
6 S97016591 Complete Blower Assembly, ** (Includes Key Nos. 6 thru 11)Version A, B, C, D
This product has been discontinued

6 S99020284 Blower Wheel-A $33.84
7 S99080565 Motor Only version A
This product has been discontinued

11a S99100491 Rubber Motor Isolator, 4-Required $27.26
6 S97016468 Motor Bracket/Plate $35.10
8 S97016459 Grille Assembly (replaced by 97017621) Version B
This product has been discontinued

8 S97017621 GrilleAssembly w/ springs ( 13 X 14) (version A,B, C $51.70
8 S97018530 Grille Assembly w/ springs replaced by 97018870 (version D,E,F) $51.70
9 S97018014 Spacer Block Used for I-Joist Installs - 2 Required $27.26
10 S99250959 Washers #8 X .625 4-Required $18.00
11 S99260558 Nut #8-32 For Attaching Motor, 4-Required $18.00
10 QTHB1 Hanger Bar Kit - Kit Includes 2 Hanger Bars $18.36
11 S99170245 Screw Used to Attach Mounting Plate to Housing - QTXE150-A,B - #8-18 x 3/8" $18.00
11 S99500397 Insulation Pad that Attaches to Mounting Plate
This product has been discontinued

7 S99140199 Grille Spring 2- Required $18.00
