Broan QTXE110S Humidity Sensing Bathroom Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

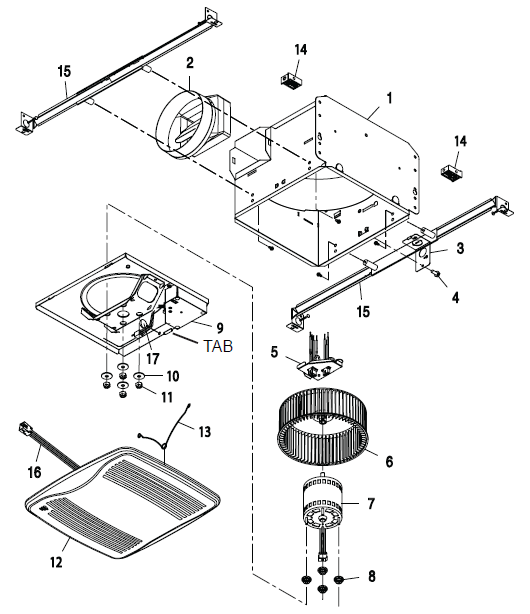

Broan QTXE110S Humidity Sensing Bathroom Fan Parts
Broan QTXE110S Humidity Sensing Bathroom Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  QTXE110S New Production Complete
This product has been discontinued

2 S97016450 Damper/Duct Connector - 6" $27.26
3 S98010102 Electrical Knockout Plate For Top of Housing $33.84
5 S97017085 WIRE PANEL FAN QT SENSAIRE $33.84
6 S99020284 Blower Wheel-A $33.84
6 S97017863 Blower Wheel - QTXE110S-B $27.26
7 S97020972 Motor Assemble W/ Humidity Control (A,B,C,D,E) $297.04
7 S97020052 Humidity Control Sensor (B version) $137.24
7 S1102738 HUMIDITY CONTROL MODULE - (A,C,D,E,F version) $117.50
7 S99080580 Motor see 970220972
This product has been discontinued

7 S97021084 Motor & Blower Wheel Assembly - (E, F version-not humidity controler $122.20
8 S99100491 Rubber Motor Isolator, 4-Required $27.26
9 S97017083 MOTOR PLATE & CONTROL ASSEMBLY $172.96
12 S1102739  GRILLE ASSEMBLY - INCLUDES HUMIDITY CONTROL MODULE, SENSOR, & SPRINGS $187.06
13 S99140199 Grille Spring 2- Required $18.00
10 S99250959 Motor Mounting Washer - QTXE110S-A - #8 x 5/8" - 4 Required $18.00
11 S99260558 Motor Mounting Nut - QTXE110S-A - #8-32 - 4 Required $18.00
14 S99111293 SPACER F/N-CAN $0.00
15 QTHB1 HANGER BAR KIT $18.36
16 S99271344 SENSOR WIRE HARNESS $27.26
14 S97018014 "I" Joist Spacer Block - 2 Required $27.26
  S97020954 WIRE PANEL / HARNESS ASSEMBLY - INCLUDES FAN AND LIGHT RECEPTACLES verson E $27.26
