Broan QTX110SL Bathroom Fan With Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan QTX110SL Bathroom Fan With Light Parts

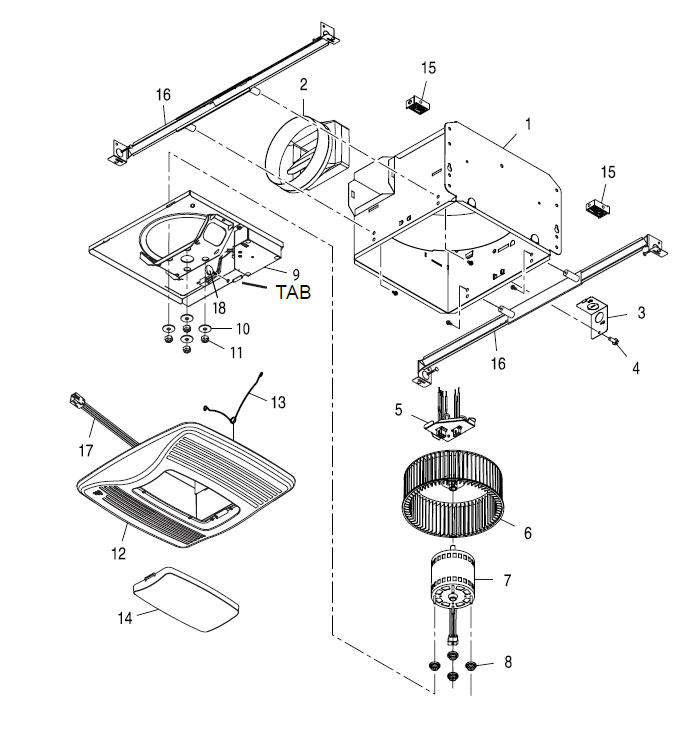

Broan QTX110SL Bathroom Fan With Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
2 S97016450 DAMPER/DUCT CONNECTOR - 6" $27.26
3 S98010102 ELECTRICAL KNOCKOUT PLATE FOR TOP OF HOUSING $33.84
5 S97017086 WIRE PANEL/HARNESS ASSEMBLY $42.30
6 S99020284 BLOWER WHEEL $33.84
7 S97020048 MOTOR Assembly (does not include humidity need s97017083 ) $215.10
0 S97017452 MOTOR ASSEMBLY (MOTOR,BLADE,BRACKET) obsoleted
This product has been discontinued

8 S99260558 MOTOR MOUNTING NUT - #8-32 - 4 REQUIRED $18.00
8 S99250959 MOTOR MOUNTING WASHER - #8-32 - 4 REQUIRED $18.00
9 S97017083 MOTOR PLATE & Humidity Control Assembly (no motor see s97020048) $172.96
12 S97016965 GRILLE ASSEMBLY (KEYS 13,14 & 17) $243.46
13 S99140199 GRILLE SPRING 2- REQUIRED $18.00
8 S99100491 RUBBER MOTOR ISOLATOR , 4- REQUIRED $27.26
14 S99111345 LENS $27.26
15 S99111293 SPACER F/N-CAN $1.20
16 QTHB1 QT SERIES HANGER BRACKET KIT $18.36
17 S99271344 SENSOR WIRE HARNESS $27.26
15 S97018014 "I" JOIST SPACER BLOCK- 2 REQUIRED $27.26
  S99271426 Night Light $18.00
