Broan QTRE090 90 Cfm 1.2 Sones Exhaust Fan Parts

Listed below are the parts available for this model.

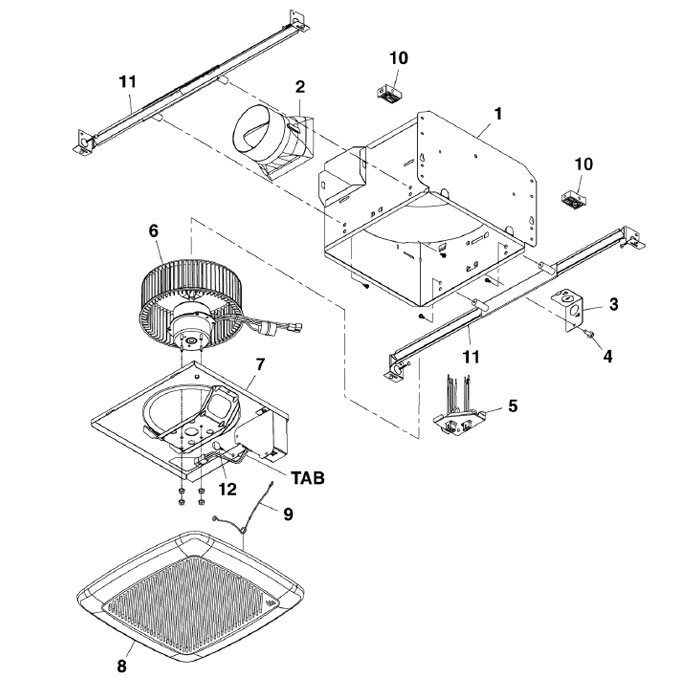

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan QTRE090 90 Cfm 1.2 Sones Exhaust Fan Parts
Broan QTRE090 90 Cfm 1.2 Sones Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S97016466 HOUSING F/N-CAN $59.22
2 S97016449 4" Damper/Duct Connector $27.26
3 S98010102 Electrical Knockout Plate For Top of Housing $33.84
5 S97018010 Wire Panel/Harness for QT Series $33.84
6 S99020284 Blower Wheel $33.84
7 S97020050 Motor Assembley A $153.90
7 S97017784 Motor ASSY QTRE090 ver A.B,C obsoleted see 97020050
This product has been discontinued

8 S97017621 Grille Assembley A (13 X 14) $51.70
8 S97016497 Grille - QTRE090-B - Includes (14 X 13) $59.22
9 S97016468 Motor Bracket/Plate $35.10
10 S99250959 Washers #8 X .625 4-Required $18.00
10 S97018014 I-Joist Spacer Block - 2 Required $27.26
11 S99260558 Nut #8-32 For Attaching Motor, 4-Required $18.00
8 S97016459 Grille Assembly (replaced by 97017621)
This product has been discontinued

12 S99100491 Rubber Motor Isolator, 4-Required $27.26
13 S99140199 Grille Spring 2- Required $18.00
14 S99111293 SPACER F/N-CAN $1.20
