Broan QTR140L Vantilation Fan Parts

Listed below are the parts available for this model.

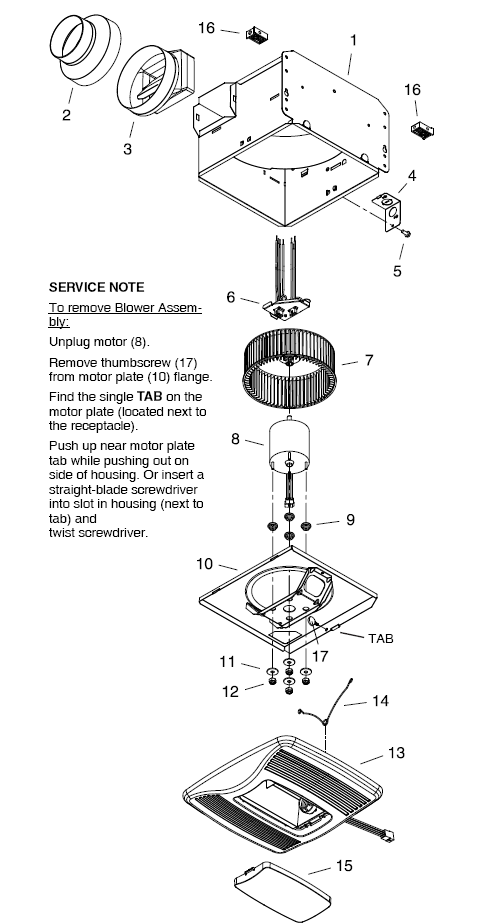

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan QTR140L Vantilation Fan Parts
Broan QTR140L Vantilation Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1S97016466 SRV ASSY HOUSING F/N-CAN $28.96
2475 DUCT REDUCER 6'' TO 4" $7.72
3S97016450 Damper/Duct Connector - 6" $8.73
4S98010102 Electrical Knockout Plate For Top of Housing $3.46
6S97018011 Wire Panel / Harness Assembly $10.10
7S99020284 Blower Wheel $7.56
8S99080595 MOTOR see s97019540
8S97019540 Motor/Wheel Complete Blower Assy. (A,B version) $94.28
8S97017069 BLOWER ASSEMBLY F/QTR140L (KEY #'S 7 THRU 12) see s97019540
9S99100491 Rubber Motor Isolator, 4-Required $2.47
10S97016468 Motor Bracket/Plate $17.93
11S99250959 Washers #8 X .625 4-Required $1.53
12S99260558 Nut #8-32 For Attaching Motor, 4-Required $1.51
13S97017067 GRILLE ASSEMBLY F/QTR140L (INCLUDES KEY #'S 14 & 15)
14S99140199 Grille Spring 2- Required $3.71
15S99111345 LENS $18.45
16S99111293 SPACER F/N-CAN $1.02
 S99271426 Night Light $3.94
