Broan QTR100FLT Ventilation Fan/Light Parts

Listed below are the parts available for this model.

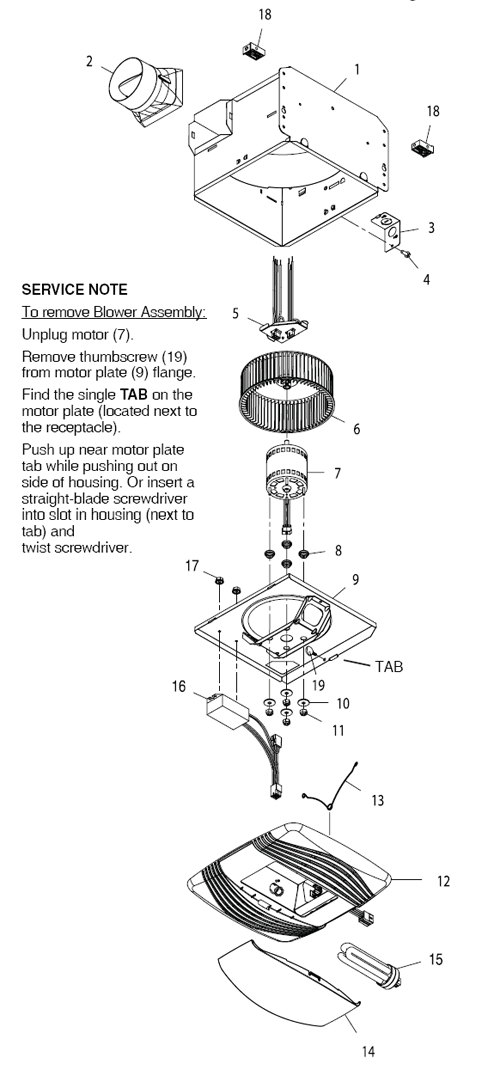

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan QTR100FLT Ventilation Fan/Light Parts
Broan QTR100FLT Ventilation Fan/Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
2 S97016449 4" Damper/Duct Connector $27.26
3 S98010102 Electrical Knockout Plate For Top of Housing $33.84
5 S97018011 Wire Panel / Harness Assembly $33.84
6 S99020284 Blower Wheel $33.84
7 S99080582 MOTOR F/110CFM QTR SEE 97018218
This product has been discontinued
8 S99100491 Rubber Motor Isolator, 4-Required $27.26
7 S97020048 Blower Assembly - Includes Motor, Blower Wheel, & Motor Mounting Plate $215.10
8 S99250959 Motor Mounting Washer - #8 - 4 Required $18.00
9 S97016901 Motor Plate $11.77
12 S97017427 GRILLE ASSEMBLY (INCLUDES KEY #13 & 14)-obsoleted send s97018273 $97.47
13 S99140199 Grille Spring 2- Required $18.00
10 S99260558 Motor Mounting Nut - #8-32 - 4 Required $18.00
11 S99260558 Ballast Mounting Nut - #8-32 - 2 Required $18.00
15 S99271358 42 WATT FLOURESCENT BULB, 3500K $59.22
16 S97016864 Ballast Assembly see s97016618
This product has been discontinued
18 S99111293 SPACER F/N-CAN $1.20
16 S97016618 Ballast With Plugs for Fluorescent Bulb
This product has been discontinued
18 S97018014 "I" Joist Spacer Block - 2 Required $27.26
  S99271426 Night Light $18.00
