Broan QT236SS 36 Inch, Stainless Steel

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."
Broan QT236SS 36 Inch, Stainless Steel

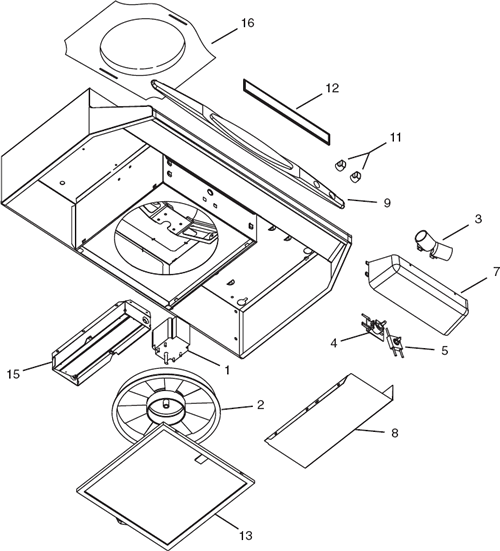

Broan QT236SS 36 Inch, Stainless Steel breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
 S97010792 7" Round Damper (Optional, not included with hood) $20.07
 SK4402000 Rectifier Assy. (Obsolete, Replaced by R111658) $5.68
 SK7577000 Motor Bracket, QT20000, (Used On Units Built Before September 2000) $5.64
 SR607222 Clamp for Blade QT20000, A, (Used On Units Built Before September 2000) $3.80
 SR99420635 Hair pin hitch clip for blade QT20000-C, $0.70
1S99080532 Motor QT20000-B, C, $56.27
7S97018564 Light Lens QT20000-A-B, C,D 3-1/4" x 9-5/8" x 3-3/8" with metal back plate $15.97
2SR531076 FAN BLADE QT20000-B,C $18.38
2SK7458000 Blade With Clamp QT20000-A $6.30
3S99271236 Light Socket-2 Required QT20000-A, B,C $3.89
3SK7457000 Light Socket-2 Required QT20000, $8.30
4SR99030319 Motor Switch $26.20
5SR561138 Light Switch $3.70
8S98009816 Wiring Cover QT20000-B, C, $8.69
8SK4423000 Wiring Cover QT20000, $1.62
9R99091033 Nameplate Plastic - Black $13.46
9SR99091034 Nameplate Plastic - White $13.46
9SR99091035 Nameplate Plastic- Biscuit $13.46
9SR99091036 Nameplate Plastic - Almond $13.46
11SR99360244 Knob - White - 2 Required $1.94
11SR99360245 Knob - Almond - 2 Required $1.94
11SR99360246 Knob - Black - 2 Required $1.94
11SR99360247 Knob - Biscuit - 2 Required $1.94
12SR99091071 Plastic Baffle Louver Vent Cover- Black $1.66
12SR99091072 Plastic Baffle Louver Vent Cover- White $1.66
12SR99091073 Plastic Baffle Louver Vent Cover- Biscuit $1.66
12SR99091074 Plastic Baffle Louver Vent Cover- Almond $1.66
13S99010316 Aluminum Filter 11 ¼ x 11 ¾ $10.87
13S99010317 Non-Ducted Filter 11 ¼ x 11 ¾ $14.04
15S97005544 Damper Assembly 3-1/4" X 10" $10.96
16SR680508 7" Round Duct Plate $19.88
