Broan QT110HL Heater/Fan/Light/Night Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

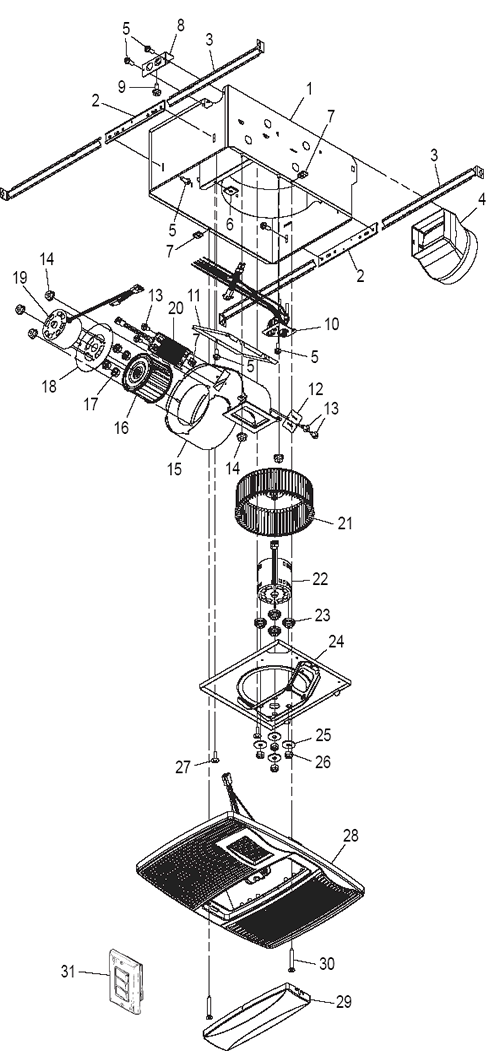

Broan QT110HL Heater/Fan/Light/Night Light Parts
Broan QT110HL Heater/Fan/Light/Night Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S97020889 Complete Heater Assembly (Includes Key Nos. 12 thru 20) $319.50
 S97016567 Complete Exhaust Fan Assembly (Includes Key Nos. 21 thru 26) $189.90
2S98007763 Slide Bracket Channel - 2 Required $3.78
3S98003036 Mounting Bracket (4 req.) $18.00
4S97016450 Damper/Duct Connector - 6" $21.60
5S99170245 Screw, #8-18 x 3/8" $18.00
7S99260512 Sheet Metal Nut For Above Grille Screw Attachment $18.00
9S99150471 Screw, #10-32 x 1/2" Hex Washer Head $18.00
10S97016563 Wire Panel/Harness Assembly $88.20
16S99020283 Wheel For Heater $27.00
19S99080558 Motor For Heater $81.90
20S97020888 Heater Element $42.34
21S99020284 Blower Wheel $28.80
22S99080556 Motor For Exhaust Fan $99.90
23S99100491 Rubber Motor Isolator, 4-Required $18.00
2497016471 Motor Bracket/Partition Plate For Exhaust Fan $83.80
25S99250959 Washer For Exhaust Fan Motor (4-Required) $18.00
26S99260558 Nut #8-32 For Attaching Motor, 4-Required $18.00
28S97016474 Grille Assy. With Lens and Sockets $206.10
29S99111291 Light Lens obsolete see 99111460 $0.00
30S99150622 Grille Screw #8-18 X 2.0 (2- required) $18.00
29S99111460 Lens
This product has been discontinued
