Broan QP136BL 36" Range Hood - Black Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan QP136BL 36" Range Hood - Black Parts

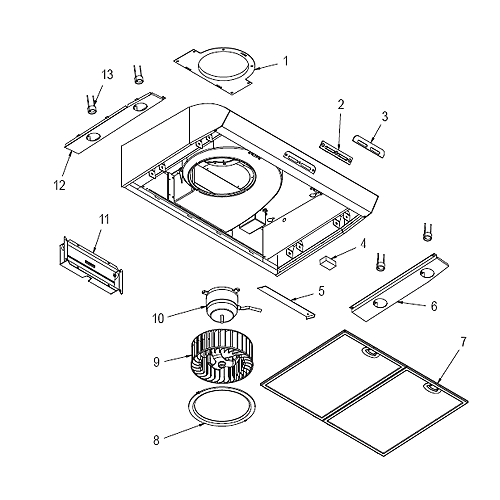

Broan QP136BL 36" Range Hood - Black Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
Not Shown S99526707 Suction Cup Tool (for assistance in light bulb install/removal) $27.26
notshown S99526798 LED (LED MR16, GU10, Base 50 W) $16.60
  S97010792 7" Round Inline Damper $42.30
0 HCK44 Cord Kit with 6' cord and plug $42.30
1 SR680508 7" Round Duct Plate OBSOLETED S97017727 this is an alternative $37.60
2 S97017729 Switch Assembly White (includes 2 switches, nameplate, mounting hardware) $33.84
2 S97017730 Switch Assembly Black (includes 2 switches, nameplate, mounting hardware) $42.30
3 S99526653 Nameplate Cover for Switch, White
This product has been discontinued

7 S97017720 Filter Kit for 30" Hood (2 per bag) 11 13/16 X 16 1/4 $171.08
7 S97017721 Filter Kit for 36" Hood (2 per bag) 14 13/16 x 16 1/4
This product has been discontinued

7 S99527587 Non-Ducted Filter Clip Kit - Includes 4 Clips
This product has been discontinued

Not Shown S99010353 Non-Duct Filter Kit for 30" Hood (2 charcoal filters) 10 7/8 x 15 5/16 $51.70
Not Shown S99010354 Non-Duct Filter Kit for 36" Hood (2 charcoal filters ) 13 7/8 x 15 5/16 $37.33
3 S99526652 Nameplate Cover for Switch, Black $3.80
4 S97017736 Capacitor Kit (includes wire nuts, mounting screw) $33.84
5 S97017753 Non-duct Slide, White (includes mounting hardware) $6.50
5 S97017821 Non-duct Slide, Black (includes mounting hardware) $27.26
6 S97017755 Light Panel RH White (includes mounting hardware) $15.28
6 S97017756 Light Panel RH Black (includes mounting hardware) $15.28
6 S97017757 Light Panel RH Stainless (includes mounting hardware) $51.70
8 S97017754 Venturi Ring (includes mounting hardware) $33.84
9 S97017734 Blower Wheel (includes mounting nut)
This product has been discontinued

10 S97017732 Motor Kit (includes motor, isolators, mounting hardware) $238.76
11 S97017728 Damper / Duct Connector (includes mounting hardware) $15.30
12 S97017758 Light Panel LH White (includes mounting hardware) $15.28
12 S97017759 Light Panel LH Black (includes mounting hardware) $15.28
12 S97017760 Light Panel LH Stainless (includes mounting hardware) $24.50
13 S97017731 LAMP SOCKET $27.26
