Broan QL1 4-Way Convertible Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan QL1 4-Way Convertible Range Hood Parts

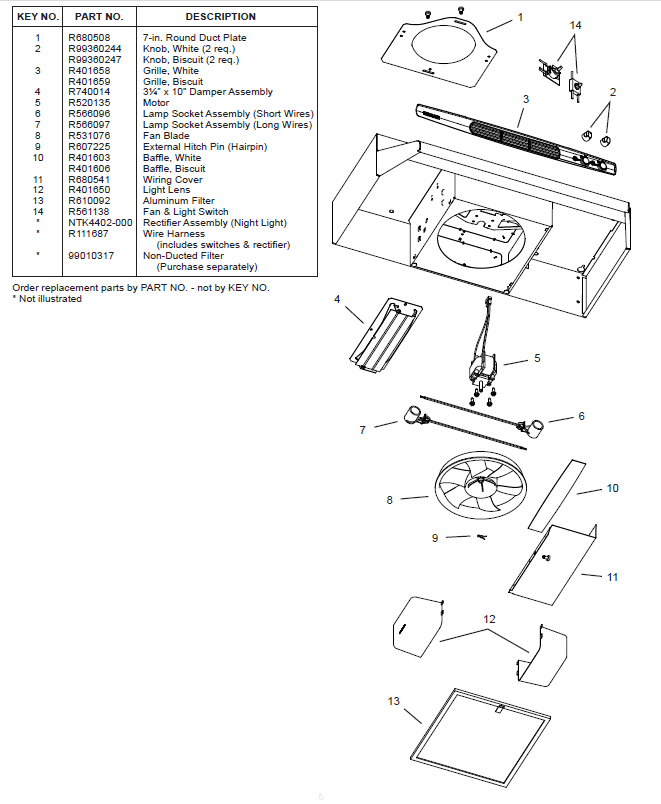

Broan QL1 4-Way Convertible Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0 HCK44 Cord Kit with 6' cord and plug $42.30
  S97005543 Parts Bag - Includes 4 Wood Screws - #10 - 16 x 3/4" $27.26
2 SR561157 FAN AND LIGHT SWITCH, BLACK (2 required) $42.30
  SR111658 Rectifier Assembly for Night Light Function $27.26
  SR99091072 Baffle - White $27.26
  SR99091073 Baffle - Biscuit $33.84
1 SR680508 7" Round Duct Plate $37.60
  S97010792 7" Round Inline Damper $42.30
2 SR99360244 Knob - White (1) - 2 Required $27.26
2 SR99360247 Knob - Biscuit (1) - 2 Required $27.26
2 SR561159 FAN AND LIGHT SWITCH, WHITE (2 required) $5.28
3 SR401658 GRILLE, WHITE $59.22
4 SR740014 Damper / Duct Connector - 3-1/4" x 10" $21.74
6 S99271236 Light Socket Assembly with Short Wires on Right Side $27.26
7 SR566097 Light Socket Assembly with Long Wires On Left Side
This product has been discontinued

5 S99080666 MOTOR $85.54
7 SR566097 LAMP SOCKET ASSEMBLY, LONG LEADS
This product has been discontinued

8 SR531076 Fan Blade $27.26
9 SR99420635 Hitch Pin / Hairpin Clip $27.26
12 SR401650 LIGHT LENS sold each (2 required) $27.26
14 SR561138 Fan Switch Only $27.26
14 SR561138 Light Switch Only $27.26
14 SR111687 Switch Assembly (encludes Switches, Rectifier, & Wire Harness) $39.48
0 S99010317 Non-Ducted Filter 11 ¼ x 11 ¾ $27.26
13 SR610092 ALUMINUM FILTER $42.30
