Broan QDE 280 Cfm Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

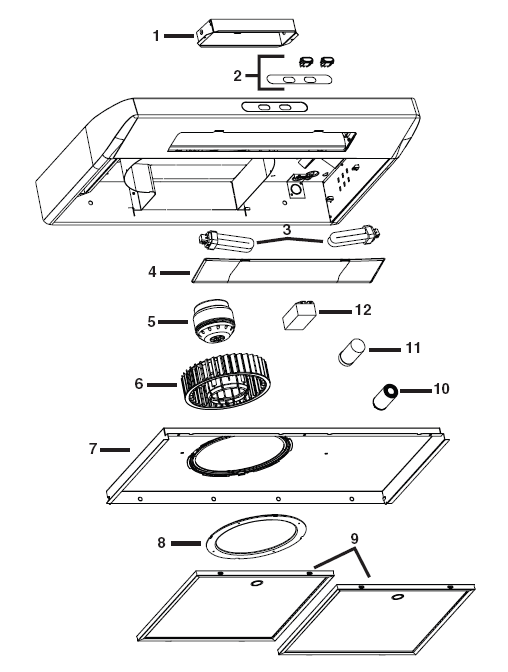

Broan QDE 280 Cfm Range Hood Parts
Broan QDE 280 Cfm Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 SV01752 Light Lens/Diffuser $33.84
0 HCK44 Cord Kit with 6' cord and plug $42.30
2 SV03623 Fluorescent Bulb 13 Watt 4 Pin (2 Req.) $27.26
3 SV03649 Ballast and Sockets for Fluorescent Bulb $162.62
4 SV14131 Filter (Cont. 1 Pair) 13-13/16" x 14-3/32" $76.14
5 SV15434 Light and Motor Switch Set White $67.68
6 SV15433 Light and Motor Switch Set Black Nameplate/Overlay for Switch Comes With Switch Set Above $59.22
7 SV01757 Plastic Inlet Ring $33.84
8 SV01988 Wheel $80.84
9 SV01765 Motor $131.60
10 SV02104 Secondary Capacitor 7.5UF (Closest to Mtr.) (Brown and Blk. Wires lead to this)
This product has been discontinued
11 SV06756 Capacitor 11.5UF (Orange, Red and Black lead to this Capacitor) $102.46
12 SV16119 Bottom Panel White $174.20
13 SV16117 Bottom Panel Black $176.60
14 SV13296 Damper/Duct Connector 3¼" x 10" $51.70
