Broan MS90 Motion Sensing 90 Cfm Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan MS90 Motion Sensing 90 Cfm Exhaust Fan Parts

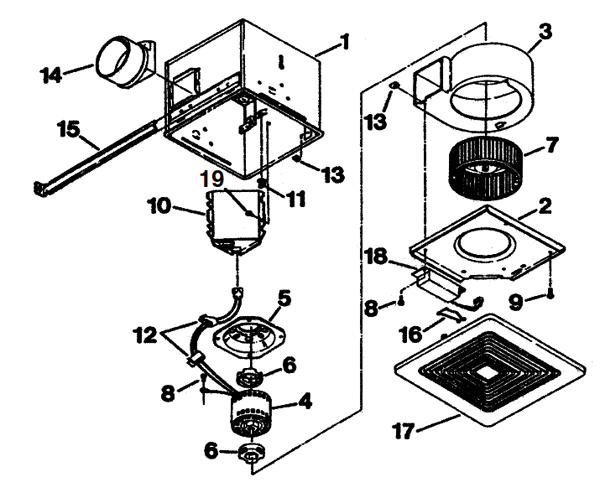

Broan MS90 Motion Sensing 90 Cfm Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1S97009275 Housing $31.14
 S99390015 Ground Clip
This product has been discontinued

3S97011270 Blower housing
This product has been discontinued

4S97009799 Fan Assembly
This product has been discontinued

4S99080273 MOTOR MS90 cw $183.60
5S95000963 Motor Cup
This product has been discontinued

6S99100412 Motor Mounting Rubber - 2 Required $18.00
7S99110735 Blower Wheel cw 5 3/4"h x 2.5w" x 5/16diam $18.00
10S97011130 WIRE CVR/HARN ASSY-FN-SVC $26.01
12S97012025 Fan Motor Adapter Plug $18.00
14S97003932 4 INCH DAMPER/DUCT CONNECTOR $18.00
15S98003036 Mounting Bracket (4 req.) $18.00
16S99140160 Grille Spring $18.00
17S97011113 GRILLE ASSY MOT FAN-SVC( COME WITH THE MOTION-2 left)
This product has been discontinued

18S97011127 CONTROL BOARD ASSY-MOTION-SVC
This product has been discontinued
