Broan L500K Ceiling Mount Kitchen Exhaust 500Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan L500K Ceiling Mount Kitchen Exhaust 500Cfm Parts

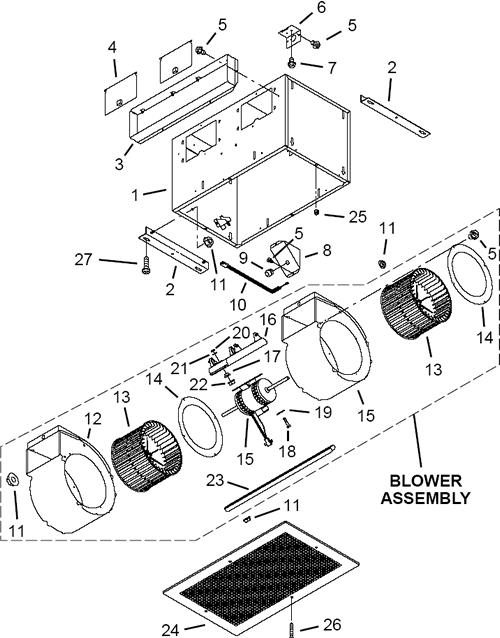

Broan L500K Ceiling Mount Kitchen Exhaust 500Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  LAF2 ALUMINUM GREASE FILTER 12 X 21 1/4 IN. $50.40
* L500K Complete New Unit
This product has been discontinued

1 S97014745 Scroll Housing $34.13
2 S98009461 Scroll Mounting Channel $9.36
2 S97014728 Mounting Bracket - 2 Required - All Units $18.00
3 S98009449 Duct Collar Without Damper Flaps $27.26
4 S97014822 Damper Flap - 2 Required - All Units $27.26
8 S98005513 Wiring Box Cover $1.73
10 S97006039 Wire Harness $33.84
13 S99020273 Metal Blower Wheel - 2 Required $111.60
16 S97014794 Motor Mounting Bracket $21.44
18 S99080487 Motor With Capacitor 120 Volt $270.72
18 S97014820 Complete Motor Assy. 120 Volt (Includes Key Nos. 5 &11 thru 23) $731.70
20 S99100497 Rubber Insolators - 4 Required $27.26
24 S98009463 Metal Grille $72.38
25 S99420470 White Plastic Grille Nut - 4 Required sold each $27.26
26 S99150472 Grille Mounting Screw - 4 Required sold each
This product has been discontinued
