Broan L500 Ceiling Mount Exhaust Fan 500Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

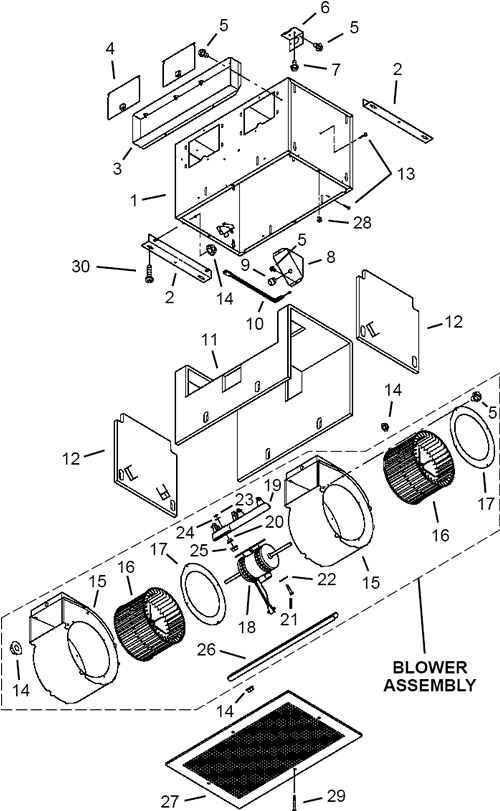

Broan L500 Ceiling Mount Exhaust Fan 500Cfm Parts
Broan L500 Ceiling Mount Exhaust Fan 500Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 LAF2 Grease Filter $50.40
*L500 Complete New Unit $390.83
1S97014745 Scroll Housing $34.13
2S97014728 Mounting Bracket - 2 Required - All Units $18.00
3S98009449 Duct Collar Without Damper Flaps $14.40
4S97014822 Damper Flap - 2 Required - All Units $18.00
8S98005513 Wiring Box Cover $1.73
10S97006039 Wire Harness $18.00
19S97014794 Motor Mounting Bracket $21.44
16S99110805 Plastic Blower Wheel $25.20
18S99080487 Motor With Capacitor 120 Volt $288.00
18S97014819 Complete Motor Assy. 120 Volt (Include Key Nos. 5 & 14 thru 26) $557.10
20S99100497 Rubber Insolators - 4 Required $18.00
27S98009463 Metal Grille $91.80
29S99420470 White Plastic Grille Nut - 4 Required $18.00
29S99150472 Grille Mounting Screw - 4 Required $18.00
