Broan L100MG Exhaust Fan 100Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

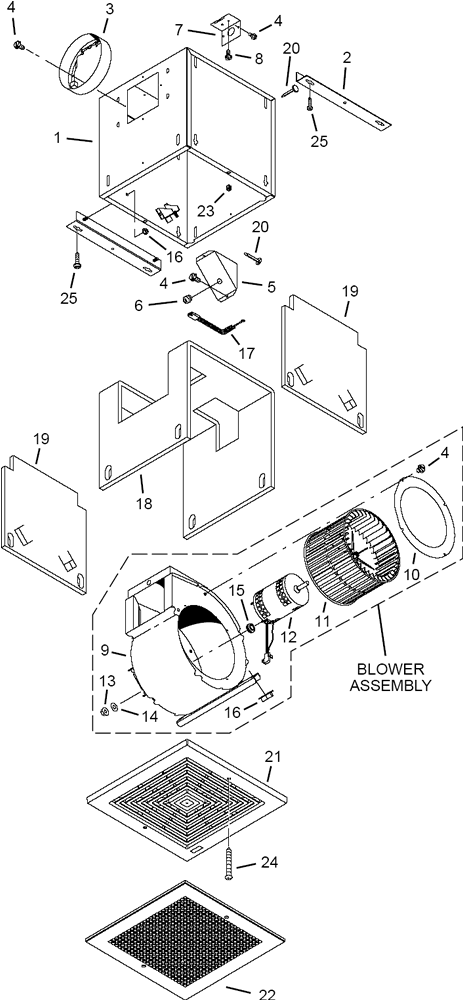

Broan L100MG Exhaust Fan 100Cfm Parts
Broan L100MG Exhaust Fan 100Cfm Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
2S97014728 Mounting Bracket - 2 Required - All Units $4.37
3S97014760 Damper Assembly 6" Round $15.79
6S98005513 Wiring Box Cover $1.73
9S97014774 Scroll Housing $35.01
11S99110805 Plastic Blower Wheel $12.28
12S99080481 Motor 120 Volt $89.06
13S99260558 Motor Mounting Nut $0.56
14S99250959 Motor Mounting Washer $0.56
15S99100491 Motor Mounting Grommet $2.27
17S97006039 Wire Harness $6.66
21S97014800 Complete Motor Assy.120 Volt (Includes Key Nos. 9 thru15) $142.70
21S99110807 Plastic Grille (14x14) $16.22
22S98009416 Metal Grille $38.44
23S99420470 White Plastic Grille Nut - 2 Required $0.82
24S99150472 Grille Mounting Screws - 2 Required $0.82
