Broan HS130 Humidity Sensing 130 Cfm Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan HS130 Humidity Sensing 130 Cfm Exhaust Fan Parts

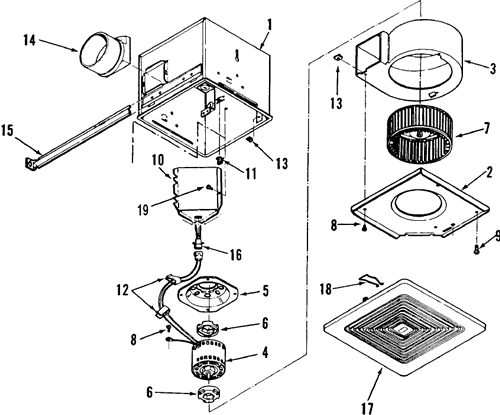

Broan HS130 Humidity Sensing 130 Cfm Exhaust Fan Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
1S97009275 Housing $28.80
 S99390015 Ground Clip $0.72
2S97014513 Motor Mounting Bracket & Plate $7.98
3S97011270 Blower housing $29.16
4S97009287 receptacle for motor $2.52
5S95000963 Motor Cup $3.64
6S97009800 MOTOR Assy Motor/Blade/Bracket $177.22
6S99080274 MOTOR Only version A (JA2M373N) $78.86
7S99110735 Blower Wheel $5.60
11S99100412 Motor Mounting Rubber - 2 Required $5.00
14S97011965 Humidity CONTROL ASSY HS90/HS130 $182.99
14S97003932 4 INCH DAMPER/DUCT CONNECTOR $2.70
16S98003036 Housing mounting bracket (need 4) $1.03
17S99140160 Grill Springs $1.03
18S97009281 Grille With Springs $16.18
