Broan HRV200H Heat Recovery Ventilator Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

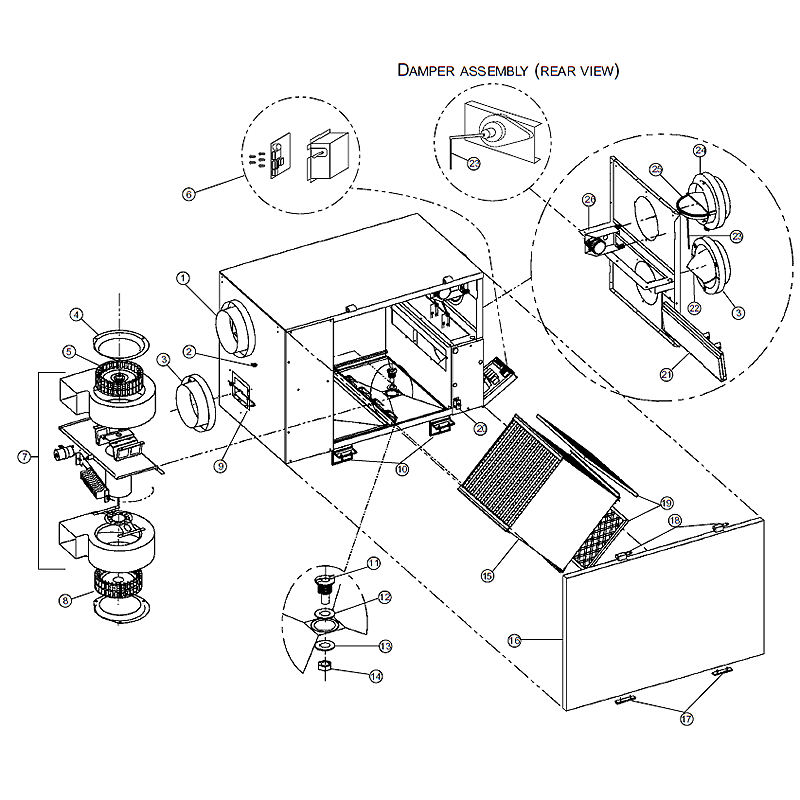

Broan HRV200H Heat Recovery Ventilator Parts
Broan HRV200H Heat Recovery Ventilator Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  SV03135 HRV Core $418.30
  SV13505 Blower Assembly - Includes Motor & Blower Wheels $666.46
  SV02104 Capacitor
This product has been discontinued
  SV12646 Electronic Circuit Board & cover $357.20
  SV12886 Blower Wheel Kit $122.35
5 SV02015 Blower Wheel DBL CW WHEEL 6.290" X 2.000" $117.50
  SV03093 DBL CCW WHEEL 6.19" X 2.39" $118.44
  SV12873 Heat Sink $73.53
  SV01825 Safety Interrupter Switch $30.08
  SV12895 Thermistor $126.90
  SV18304 Fuse for Power Cord - 5mm x 15mm, 3 Amp, 250V $42.30
  SV12658 Furnace Interlock Switch Kit $47.23
  SV12648 Door Assembly $210.38
  SV00672 Hinge Assembly $27.26
  SV05960 Door Latch $57.34
  SV00887 Door Latch Keeper $27.26
  SV03124 Damper Motor/ Actuator Assembly $188.94
  SV12459 Fresh Damper $64.86
  SV12620 Damper Rod $42.30
17 SV03097 FILTER F/ERV/HRV200 $42.30
  SV00248 Damper Rod Rubber Grommets $42.30
  SV12643 Defrost Damper $36.66
  New Part Damper Assembly $85.54
  SV02021 Upper Right Port for Fresh Air from Outside - Double Collar $51.70
  SV02257 Upper Left Port for Stale Air Out - Double Collar $33.84
  SV02256 Lower Balancing Port $57.34
  SV13404 Silicone Tube $42.30
  SV03148 Parts Bag - Includes Hanger Kit $49.90
  SV03203 Parts Bag - Includes Drain Kit $42.30
