Broan HRV100H Heat Recovery Ventilator Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

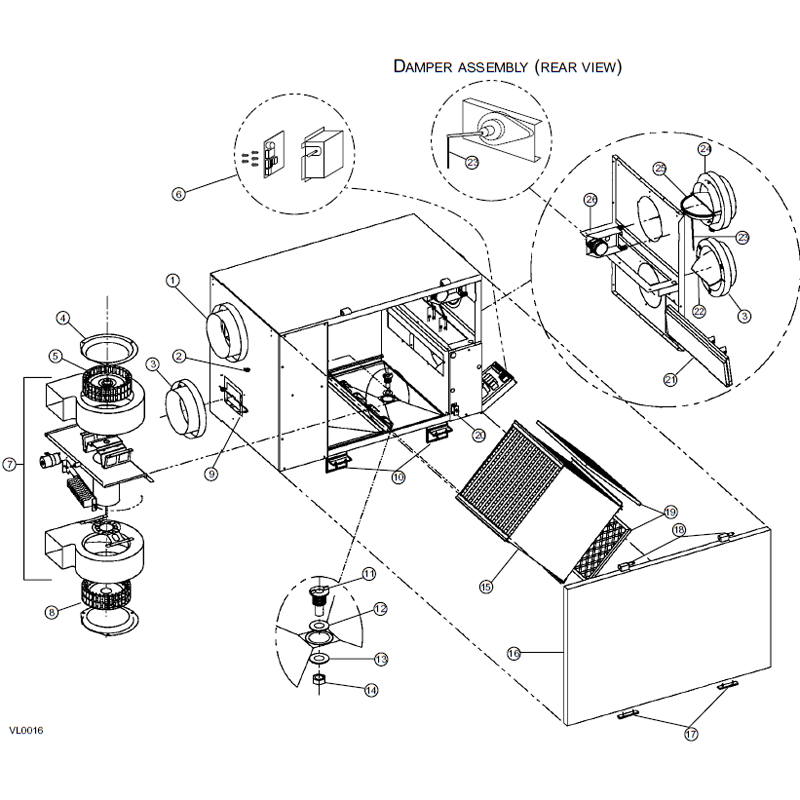

Broan HRV100H Heat Recovery Ventilator Parts
Broan HRV100H Heat Recovery Ventilator Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 SV03134 HRV Core $437.89
 SV13504 Motor Assemble $493.40
 SV12886 Blower Wheel $122.35
 SV02104 Capacitor $25.58
 SV12646 Electronic Circuit Board & Cover Sink $318.64
 SV12873 Heat Sink $73.53
 SV01825 Safety Interrupter Switch $11.41
 SV12895 Thermistor $76.52
 SV18304 Fuse for Power Cord - 5mm x 15mm, 3 AMP, 250V $14.96
 SV12658 Furnace Interlock Switch Kit $47.23
 SV12648 Door Assembly $176.63
 SV00672 Hinge Assembly $3.98
 SV00886 Door Latch $1.31
 SV00887 Door Latch Keeper $9.14
 SV03124 Damper Motor/ Actuator Assembly $159.61
 SV12459 Fresh Air Damper $36.41
 SV12620 Damper Rod $4.73
 SV00248 Damper Rod Rubber Grommet $1.10
 SV02021 Upper Right Port for Fresh Air from Outside - Double Collar $10.17
 SV02257 Upper Left Port for Stale Out- Double Collar $25.25
 SV02256 Lower Balancing Port- Double Collar $13.86
 SV13404 Silicon Tube $1.03
 SV03148 Parts Bag- Hangar Kit $22.59
 SV03203 Parts Bag - Drain Kit $6.84
 SV03096 Filter/ ERV/ HRV100 (12 7/8 x11 3/4) $28.21
