Broan GSFH1K Indoor Air Filtration System Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan GSFH1K Indoor Air Filtration System Parts

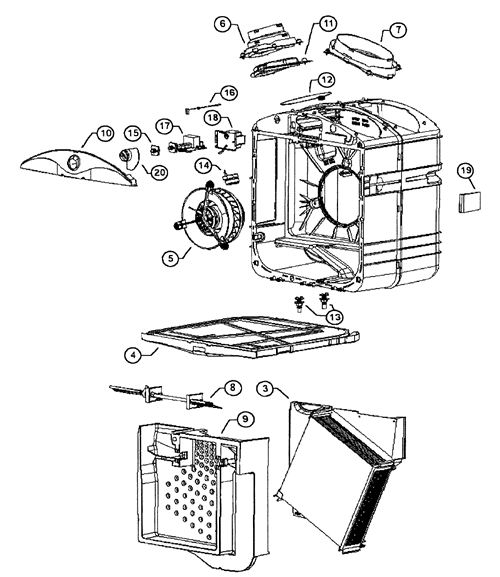

Broan GSFH1K Indoor Air Filtration System Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
 SV05248 PULL TAB FOR HEPA FILTER $1.75
 SV05280 WALL CONTROL- INCLUDES 40' LOW VOLTAGE WIRE $114.56
 SV05129 KNOB FOR WALL CONTROL $1.65
 SV14378 PORT KIT- 5"/6" ROUND $16.07
 SV14787 WHITE PLASTIC INLET GRILLE $32.58
 SV04400 DUCT CONNECTOR/ ADAPTER FOR MOUNTING TO FURNACE/ AIR HANDLER $37.13
 SV04655 PARTS BAG - INCLUDES CHAIN & SPRINGS FOR HANGING, SCREWS, & PLUG $24.80
 SV05294 PARTS BAG - INCLUDES WALL ANCHOR, SCREWS, & PINS $5.33
 SV14585 INSTALLATION KIT- INCLUDES INLET GRILLE, DUCT CONNECTOR, & HARDWARE $231.37
 SACCGSFHP2 Yearly Kit, 1 HEPA Filter & 2 Pre-Filters (hepa 19 15/16 x 15 3/4 pre 18 3/4 x 14 7/8) $130.00
 SACCGSFH Hepa Filter (19 15/16 x 15 3/4) $130.90
 SACCGSFP2 2 Pack Pre-Filters (18 3/4 x 14 7/8) $28.03
 SACCGSUP5 5 Pack Pine Pollen Filters $84.63
4SV14376 DOOR ASSEMBLY $112.78
5SV14570 MOTOR ASSY F/GSFH1K $474.72
7SV14379 PORT KIT 8" W/4 SCREWS $15.74
10SV14382 FACIA KIT W/SCREWS $19.78
11SV14041 CAP PORT 5" KIT W/4 SCREWS $14.06
17SV14383 PC BOARD F/GSFH1K, GSVH1K $88.84
18SV14573 TRANSFORMER ASSEMBLY $168.67
19SV04410 DOOR LATCH $31.76
20SV04411 KNOB F/3 POSITION SWITCH $25.64
