Broan E662E Range Hood F/ Remote Blowers Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan E662E Range Hood F/ Remote Blowers Parts

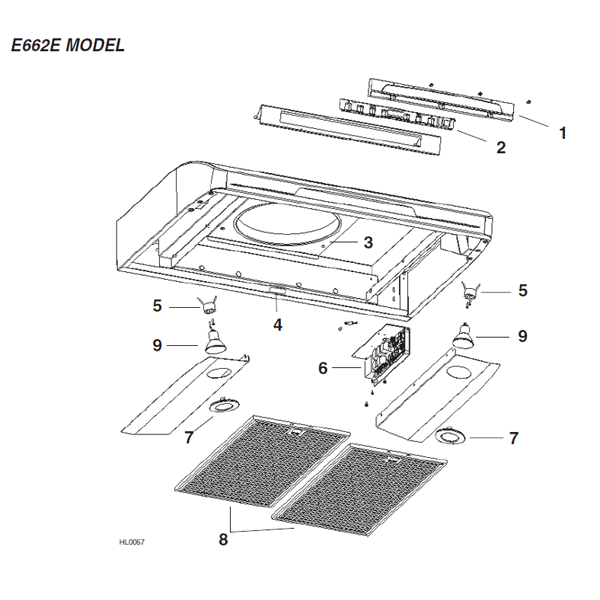

Broan E662E Range Hood F/ Remote Blowers Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99091031 Broan Elite Logo $5.20
 SV06752 Parts Bag - Includes [2] Wire Clamp, [3] Wire Connectors, [5] #8 x 1/2" Screws, & [9] #8 x 3/8" Screws $14.04
1SV06262 CONTROL FASCIA F/ELITE HOODS $19.39
2SV06263 CONTROL PCB F/ELITE HOODS $137.92
3SV06777 ROUGH-IN PLATE F/ELITE HOODS $83.41
4SV06750 LOGO BROAN ELITE HOODS $7.42
5SV05917 LAMP SOCKET F/GU10 BULBS $24.16
6SV06749 CONTROL PROCESSOR UNIT $176.94
7SV06268 TRIM RING F/ELITE HOODS $40.79
8SV06265 FILTER 9.922 X 17.981 30" (2) REQ. / FOR 42" WIDTH (3) REQ.-sold each $90.34
8SV06266 FILTER 19.922 X 17.981 36" WIDTH HOOD (2) REQ. sold each $95.11
9SV05921 HALOGEN LAMP 120V 50W GU10 $28.94
0SV06734 LOW VOLTAGE HARNESS F/ 30" ELITE HOODS $23.56
0SV06745 LOW VOLTAGE HARNESS F/ 36" ELITE HDS $26.12
0SV06746 LOW VOLTAGE HARNESS F/ 42" ELITE HDS $27.34
0SV06744 TRNSFRMR & HARNESS KIT F/ELITE HDS $35.35
