Broan E661 Range Hood 550 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan E661 Range Hood 550 Cfm Parts

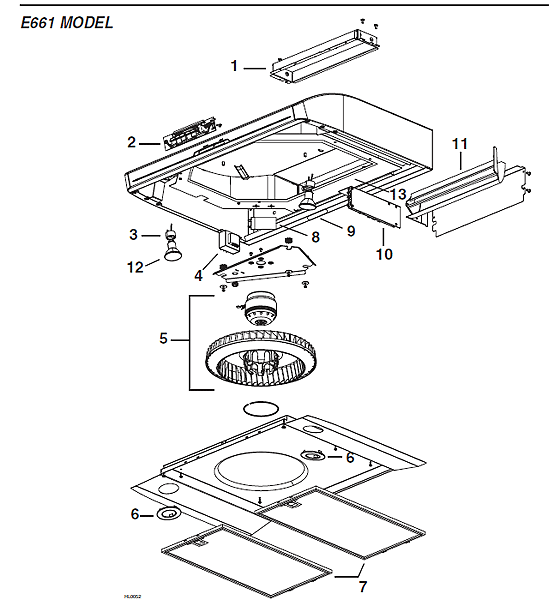

Broan E661 Range Hood 550 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 SV14971 Damper 3¼” x 14", P8-B (A & B) $66.74
0 HCK44 Cord Kit with 6' cord and plug $42.30
2 SV09225 Switch assembly w/ buttons & ciruit board ( B) $282.94
2 SV18247 Switch Bracket Repair kit (A & B) $138.18
2 SV06118 ELECTRONIC CONTROL F/ELITE HOODS (A )
This product has been discontinued

3 SV05917 LAMP SOCKET F/GU10 BULBS (A & B) $63.92
4 SV06735 TRANSFORMER & HARNESS KIT F/ELITE HDS(A & B) $120.32
5 SV01766 MOTOR ELITE HDS(W/V06111 WHEEL) (A & B) $160.74
6 SV06268 TRIM RING F/ELITE HOODS (A) $88.20
6 SV09434 TRIM RING F/ELITE HOODS (B) $42.30
7 SV06244 FILTER 9.7/8 X 18 (2required for 30" 3required for 42") sold each $76.14
7 SV06264 FILTER 12.7/8X 18 (36" requries 2 filters) sold each (A & B) $84.60
8 SV02160 Capacitor 15M FD ( 2 - required) TRIM RING F/ELITE HOODS (A & B) $52.64
9 S99091031 Broan Elite Logo (A & B) $27.26
9 SV06750 LOGO BROAN ELITE HOODS $7.42
10 SV06733-1 CONTROL PROCESSOR UNIT (A ) $465.30
11 SV06252 DIVERTER F/ELITE HOODS (A & B) $98.91
12 SV05921 LED (LED MR16, GU10, Base 50 W) (A & B) $32.40
0 SV06734 LOW VOLTAGE HARNESS F/ 30" ELITE HOODS $23.56
0 SV06745 LOW VOLTAGE HARNESS F/ 36" ELITE HDS $26.12
0 SV06746 LOW VOLTAGE HARNESS F/ 42" ELITE HDS $27.34
  SV06751 Parts Bag - Includes [1] Wire Clamp, [2] Wire Connectors, [5] #8 x 1/2" Screws, & [3] #6 x 1/2" Screws $50.76
