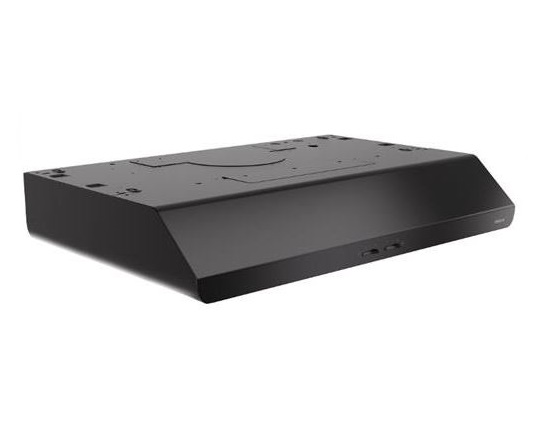

Broan BKSH130BL Black Rangehood 250cfm

Listed below are the parts available for this model.

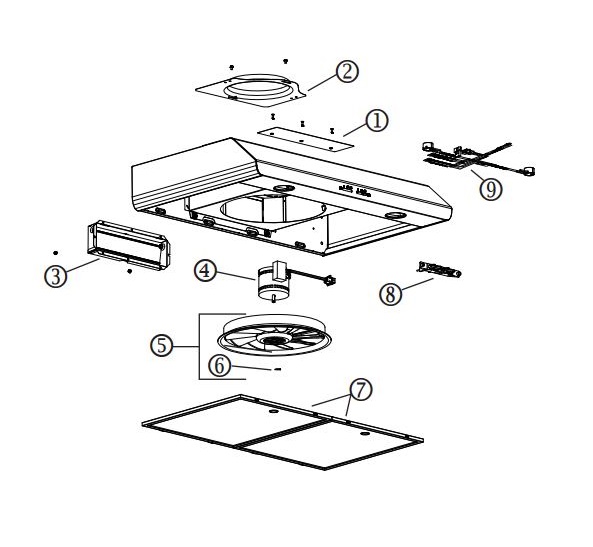

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan BKSH130BL Black Rangehood 250cfm
Broan BKSH130BL Black Rangehood 250cfm breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 BKSH130BL Complete New Unit $194.07
1S97020031 Recirculation Cover Plate, Stainless Steel (Including Screws) $8.35
2S97018567 7'' Round Duct Plate (Including Screws) $9.68
3S97020534 3¼” X 10” Damper Assembly (Including Screws) $7.04
4S97020408 Blower Motor (Including 4 Screws And 1 Capacitor) $50.09
5S97020407 Fanpeller (Including Item 6) $17.01
6SR99420635 Clip For Fanpeller $0.77
7S99010434-002 Grease Filter - Micro Mesh - Type C2 (Set Of 2) $48.20
9S97020448 Wire Harness $13.52
 S97020292 Parts Bag $4.75
 S97020466 Non-Ducted Filter - Type Xc (Set Of 2) $41.11
 S99527587 Non-Ducted Filter Clip Kit (Includes 4 Clips $4.16
 S97020470 Easy Install Kit (Including Hardware) $18.04
*BP87Q 7" foam quiet damper/ hood $10.58
