Broan BKDEG130BL Black Rangehood 300cfm

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

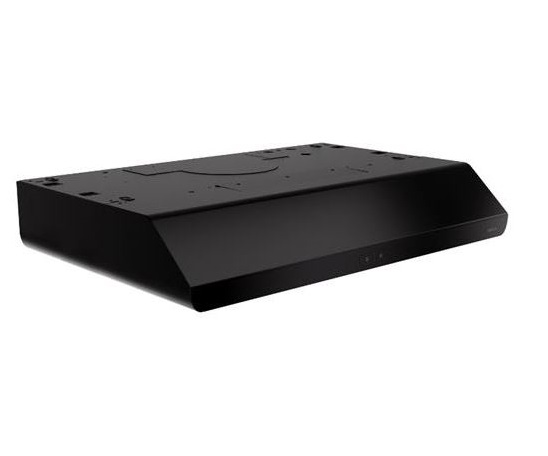

Broan BKDEG130BL Black Rangehood 300cfm

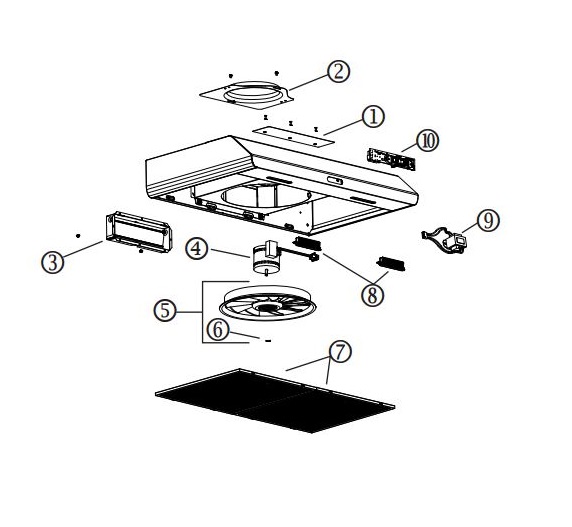

Broan BKDEG130BL Black Rangehood 300cfm breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  BKDEG130BL Complete New Unit
This product has been discontinued

  HAWRK3 Low voltage wiring kit for ADA application $51.89
1 S97020031 Recirculation Cover Plate, Stainless Steel (Incl. Screws) $27.26
2 S97018567 7'' Round Duct Plate (Including Screws) $27.26
3 S97020534 3¼” X 10” Damper Assembly (Including Screws) $27.26
4 S97020409 Blower Motor (Including 4 Screws And 1 Capacitor) $113.74
5 S97020407 Fanpeller (Including Item 6) $51.70
6 SR99420635 Clip For Fanpeller $27.26
7 S99010431-002 Grease Filter - Micro Mesh - Oblong Type C3 (Set Of 2) $125.96
8 S97020455 Led Es (Pair) (With Wire Harness, Not Shown) $28.20
9 S97021392 Transformer 24 V 18 Va (With Screws) $67.68
10 S97020434 Captouch Control Led Es, Stainless (With Screws) $157.92
10 S97020435 Captouch Control Led Es, White (With Screws) $159.80
10 S97020436 Captouch Control Led Es, Black (With Screws) $153.22
  S97020466 Led Driver Es (With Screws) $46.06
  S97020360 Parts Bag $27.26
  S97020466 Non-Ducted Filter - Type Xc (Set Of 2) $46.06
  S99527587 Non-Ducted Filter Clip Kit (Includes 4 Clips)
This product has been discontinued

  S97020470 Easy Install Kit (Including Hardware) $42.30
* BP87Q 7" foam quiet damper/ hood $12.59
  New Part $0.00
