Broan BKDB136BL Black Rangehood 250cfm

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

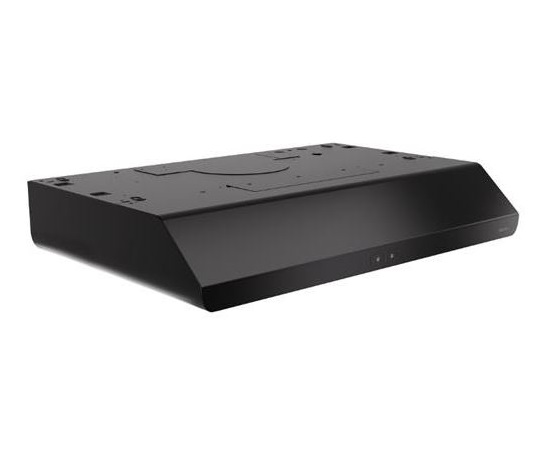

Broan BKDB136BL Black Rangehood 250cfm
Broan BKDB136BL Black Rangehood 250cfm breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  BKDB136BL Complete New Unit $281.20
  HAWRK3 Low voltage wiring kit for ADA application $51.89
1 S97020031 Recirculation Cover Plate, Stainless Steel (Including Screws) $27.26
2 S97018567 7'' Round Duct Plate (Including Screws) $27.26
3 S97020534 3¼” X 10” Damper Assembly (Including Screws) $27.26
4 S97020408 Blower Motor (Including 4 Screws And 1 Capacitor) $107.16
5 S97020407 Fanpeller (Including Item 6) $51.70
6 SR99420635 Clip For Fanpeller $27.26
7 S99010434-002 Grease Filter-Micro Mesh - Type C2 (Set Of 2) $67.68
7 S99010434-003 Grease Filter-Micro Mesh - Type D2 (Set Of 2) $67.68
8 S97020452 Led (Pair) (With Wire Harness, Not Shown) $33.84
9 S97021392 Transformer 24 V 18 Va (With Screws) $67.68
10 S97020431 Captouch Control Led, Stainless (With Screws) $186.12
10 S97020432 Captouch Control Led, White (With Screws) $189.88
10 S97020433 Captouch Control Led, Black (With Screws) $166.38
  S97020360 Parts Bag $27.26
  S97020466 Non-Ducted Filter - Type Xc (Set Of 2) $46.06
  S97020467 Non-Ducted Filter - Type Xd (Set Of 2) $51.70
  S99527587 Non-Ducted Filter Clip Kit (Includes 4 Clips)
This product has been discontinued

  S97020470 Easy Install Kit (Including Hardware) $42.30
* BP87Q 7" foam quiet damper/ hood $12.59
