Broan BCSEK130WW White RangeHood 250cfm

Listed below are the parts available for this model.

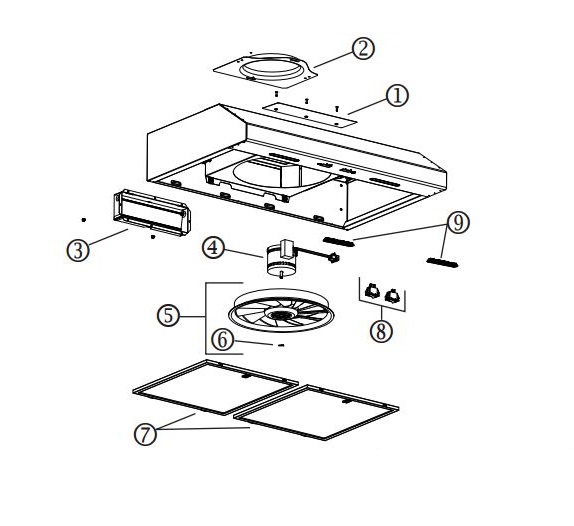

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

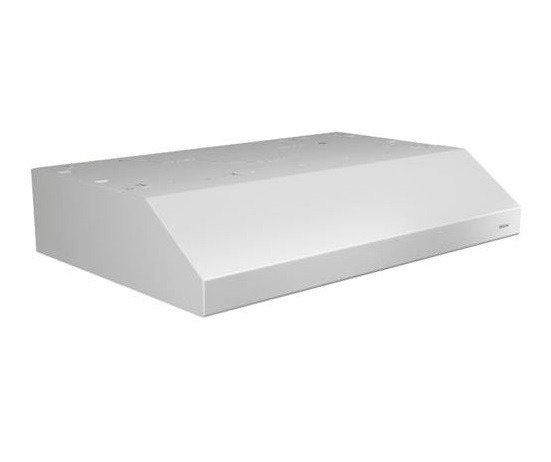

Broan BCSEK130WW White RangeHood 250cfm
Broan BCSEK130WW White RangeHood 250cfm breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  BCSEK130WW Complete New Unit $204.90
1 S97020031 Recirculation Cover Plate, Stainless Steel (Including Screws) $27.26
1 S97020472 Recirculation Cover Plate, Slate (Including Screws) $12.17
2 S97018567 7'' Round Duct Plate (Including Screws) $27.26
3 S97020534 3¼” X 10” Damper Assembly (Including Screws) $27.26
4 S97020408 Blower Motor (Including 4 Screws) $107.16
5 S97020407 Fanpeller (Including Item 6) $51.70
6 SR99420635 Clip For Fanpeller $27.26
7 S99010430-002 Grease Filter - Open Mesh -Type C1 (Set Of 2) $70.50
8 S99030377 Rocker Switches, White (Set Of 2) $27.26
8 S99030376 Rocker Switches, Black (Set Of 2) $33.84
8 S99030375 Rocker Switches, Grey (Set Of 2) $27.26
  S97020360 Parts Bag $27.26
  S97020466 Non-Ducted Filter 30"- Type Xc (Set Of 2) $46.06
  S99527587 Non-Ducted Filter Clip Kit (Includes 4 Clips)
This product has been discontinued
  S97020470 Easy Install Kit (Including Hardware) $42.30
* BP87Q 7" foam quiet damper/ hood $12.59
