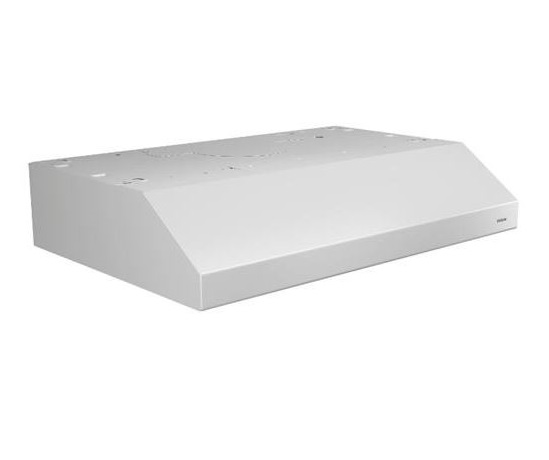

Broan BCSD124WW Rangehood White 300 Max Blower CFM

Listed below are the parts available for this model.

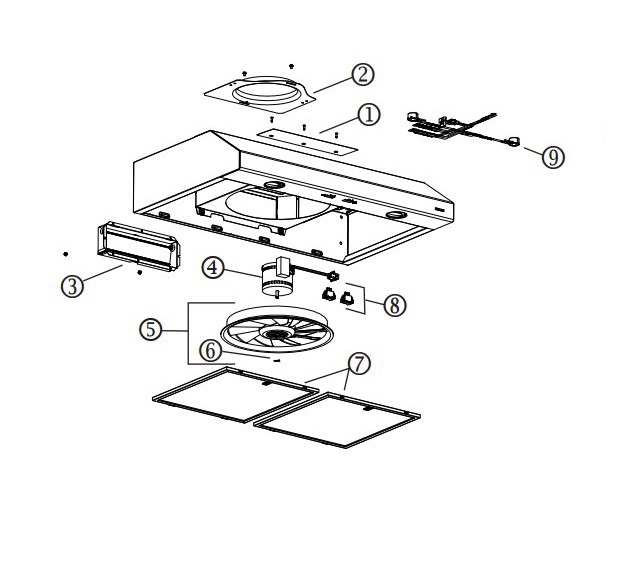

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan BCSD124WW Rangehood White 300 Max Blower CFM
Broan BCSD124WW Rangehood White 300 Max Blower CFM  breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  BCSD124WW Complete New Unit $172.23
0 SV05921 LED (LED MR16, GU10, Base 50 W) $32.40
  S97020292 Parts Bag $27.26
  S97020470 Easy Install Kit (Including Hardware) $42.30
1 S97020030 Recirculation Cover Plate, White (Including Screws) $27.26
1 S97020031 Recirculation Cover Plate, Stainless Steel (Incl. Screws) $27.26
1 S97020471 Recirculation Cover Plate, Biscuit (Including Screws) $11.34
6 SR99420635 Clip For Fanpeller $27.26
2 S97018567 7'' Round Duct Plate (Including Screws) $27.26
3 S97020534 3¼” X 10” Damper Assembly (Including Screws) $27.26
4 S97020408 Blower Motor (Including 4 Screws And 1 Capacitor) $107.16
5 S97020407 Fanpeller (Including Item 6) $51.70
7 S99010430-001 Grease Filter 24" - Open Mesh - Type B1 (Set Of 2) 15.725x10.875 $93.06
7 S97020465 Non-Ducted Filter 24" - Type Xb (Set Of 2) 9 7/8 x 14 5/8 $51.70
  S99527587 Non-Ducted Filter Clip Kit (Includes 4 Clips)
This product has been discontinued
8 S99030355 Rocker Switch, White (Set Of 2) $33.84
8 S99030356 Rocker Switch, Black (Set Of 2) $76.14
8 S99030357 Rocker Switch, Biscuit (Set Of 2) $18.00
8 S99030367 Rocker Switch, Grey (Set Of 2) $27.26
9 S97020448 Wire Harness $33.84
* BP87Q 7" foam quiet damper/ hood $12.59
