Broan BCDJ136SS RANGEHOOD 36" STAINLESS Under-Cabinet Range Hood w/ Heat Sentry®, 400 CFM

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

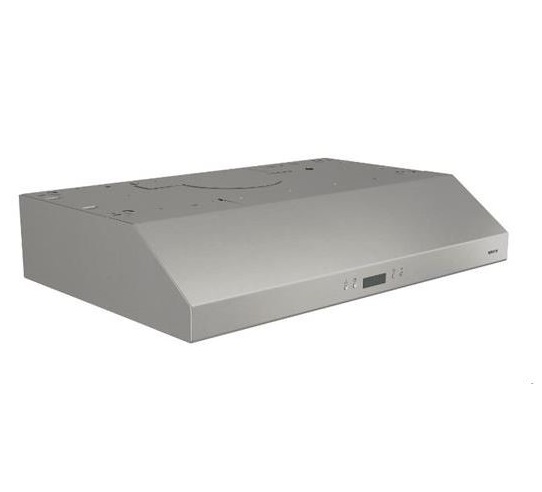

Broan BCDJ136SS RANGEHOOD 36" STAINLESS Under-Cabinet Range Hood w/ Heat Sentry®, 400 CFM
Broan BCDJ136SS RANGEHOOD 36" STAINLESS Under-Cabinet Range Hood w/ Heat Sentry®, 400 CFM breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  BCDJ136SS Complete New Unit $443.24
2 SR680508 7'' Round Duct Plate (Including Screws) $37.60
3 S97020534 3¼” X 10” Damper Assembly (Including Screws) $27.26
4 S97020412 Capacitor (Including Tie Wrap)
This product has been discontinued
4 S97020797 Autotransformer (With Screws) $69.56
4 S97021392 Transformer 24 V 18 Va (With Screws) $67.68
7 SR99420635 Clip For Fanpeller $27.26
8 S97020467 Non-Ducted Filter 36"- Type Xd (Set Of 2) (Non-Ducted Installation Only) $51.70
8 S99527587 Non-Ducted Filter Clip Kit (Incl. 4 Clips)
This product has been discontinued
8 S99010435-003 36" Filter for Ducted hood (15 23/32 x 16 7/8) $82.72
6 S97020842 Blower Assembly CW Rev00 Left Motor/Blade/Capacitor) $193.64
10 S97020843 Blower Assembly CCW Rev00 (Motor, Blower Wheel & Capcitor) $179.54
10 S97021327 Blower Assembly CCW Right side REV01(Motor, Blower Wheel & Capcitor) $213.38
10 S97021326 Blower Assembly CW LEFT side REV01 (Motor/Wheel/Capacitor) $211.50
12 S97020444 Led Modules (Pair) $84.60
14 S97020438 Switch Assembly Rev00 & Rev01 $174.84
* BP87Q 7" foam quiet damper/ hood $12.59
  S97020470 Easy Install Kit (Including Hardware) $42.30
  S97020360 Partsbag $27.26
1 S97020031 Recirc. Cover Plate, Stainless Steel (Including Screws) $27.26
  S97020796 Wire Harness Rev00 $142.88
  S97020454 Wire Harness Rev01 $33.84
