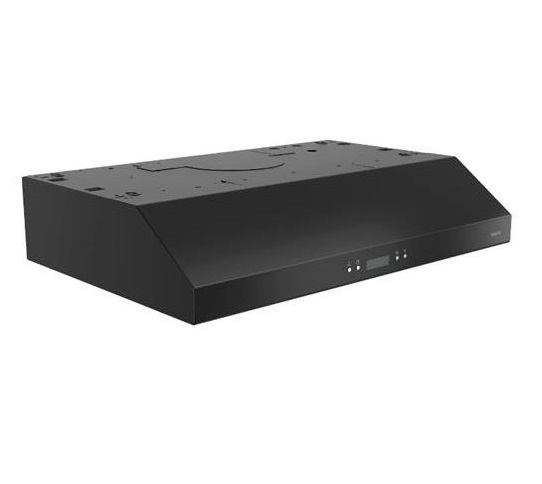

Broan BCDJ136BL Rangehood Black 36" Under-Cabinet Range Hood w/ Heat Sentry®, 400 CFM

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan BCDJ136BL Rangehood Black 36" Under-Cabinet Range Hood w/ Heat Sentry®, 400 CFM

Broan BCDJ136BL Rangehood Black 36" Under-Cabinet Range Hood w/ Heat Sentry®, 400 CFM breakout large

Part Key	Part Number	Description	Unit Price
	BCDJ136BL	Complete New Unit This product has been discontinued
2	SR680508	7'' Round Duct Plate (Including Screws)	$37.60
3	S97020534	3¼” X 10” Damper Assembly (Including Screws)	$27.26
4	S97020412	Capacitor (Including Tie Wrap) This product has been discontinued
4	S97020797	Autotransformer (With Screws)	$69.56
4	S97021392	Transformer 24 V 18 Va (With Screws)	$67.68
6	S97021291	Blower Wheels Set	$206.80
7	SR99420635	Clip For Fanpeller	$27.26
8	S97020467	Non-Ducted Filter 36"- Type Xd (Set Of 2) (Non-Ducted Installation Only)	$51.70
8	S99527587	Non-Ducted Filter Clip Kit (Incl. 4 Clips) This product has been discontinued
8	S99010435-003	36" Filter for Ducted hood (15 23/32 x 16 7/8)	$82.72
6	S97020842	Blower Assembly CW Rev00 Left (Motor/Blade/Capacitor)	$193.64
10	S97020843	Blower Assembly CCW Rev00 Right (Motor, Blower Wheel & Capcitor )	$179.54
10	S97021327	Blower Assembly CCW Right side Rev01 (Motor/Wheel/Capacitor)	$213.38
10	S97021326	Blower Assembly CW LEFT side Rev01 (including (Motor/Wheel/Capacitor)	$211.50
12	S97020444	Led Modules (Pair)	$84.60
*	BP87Q	7" foam quiet damper/ hood	$12.59
	S97020470	Easy Install Kit (Including Hardware)	$42.30
	S97020360	Partsbag	$27.26
1	S97020029	Recirc. Cover Plate, Black (Including Screws)	$27.26
	S97020796	Wire Harness Rev00	$142.88
	S97020454	Wire Harness Rev01	$33.84
