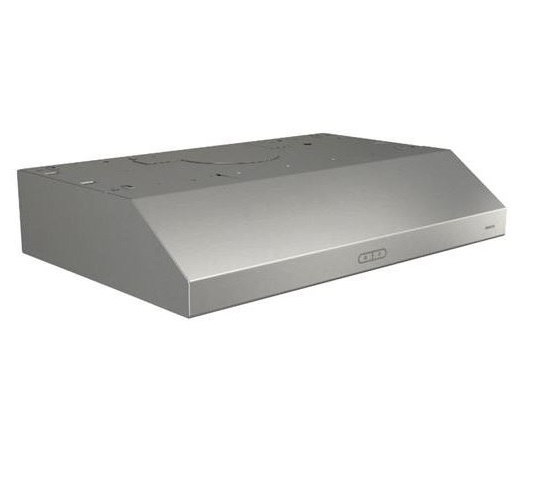

Broan BCDF142SS Under-Cabinet Range Hood, 375 Max Blower

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan BCDF142SS Under-Cabinet Range Hood, 375 Max Blower
Broan BCDF142SS Under-Cabinet Range Hood, 375 Max Blower breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  BCDF142SS Complete New Unit $345.88
  HAWRK3 Low voltage wiring kit for ADA application $51.89
1 S97020031 Recirc. Cover Plate, Stainless Steel (Incl. Screws) $27.26
2 SR680508 7'' Round Duct Plate (Including Screws) $37.60
3 S97020534 3¼” X 10” Damper Assembly (Including Screws) $27.26
4 S97020408 Blower Motor (Including 4 Screws) $107.16
5 S97020407 Fanpeller (Including Item 6) $51.70
6 SR99420635 Clip For Fanpeller $27.26
7 S99010434-004 Grease Filter - Micro Mesh 42"- Type C2 (Set Of 2) $69.56
7 S97020468 Grease Filter - Non Ducted 42"- Type D2 (Set Of 2) $67.68
8 S97020444 Led Module (Pair) $84.60
9 S97021392 Transformer 24 V 18 Va (With Screws) $67.68
10 S97020431 Captouch Control, Stainless (With Screws) $186.12
10 S97020433 Captouch Control, Black (With Screws) $166.38
  S97020452 Wire Harness $33.84
  S97020360 Parts Bag $27.26
  S97020466 Non-Ducted Filter 30"- Type Xc (Set Of 2) $46.06
  S97020467 Non-Ducted Filter 36"- Type Xd (Set Of 2) $51.70
  S97020468 Non-Ducted Filter 42"- Type Xe (Set Of 2) $67.68
  S99527587 Non-Ducted Filter Clip Kit (Includes 4 Clips)
This product has been discontinued
  S97020470 Easy Install Kit (Including Hardware) $42.30
* BP87Q 7" foam quiet damper/ hood $12.59
