Broan B30 Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan B30 Range Hood Parts

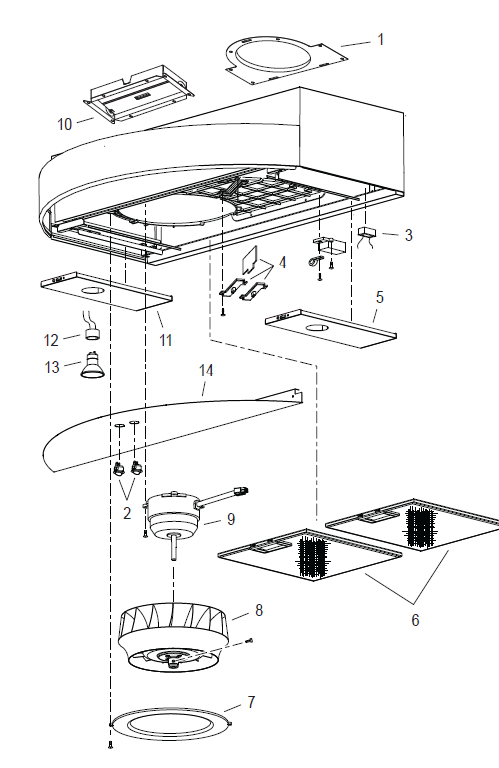

Broan B30 Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S97017727 7" Round Duct Plate (includes mounting hardware) $18.00
0 HCK44 Cord Kit with 6' cord and plug $42.30
2 S97018072 FAN LIGHT SWITCH SET
This product has been discontinued

3 S97018073 CAPACITOR KIT $14.40
4 S97018074 DIVERTER ASSEMBLY $10.51
5 S97018075 RH LIGHT PANEL 30" $26.35
5 S97018076 RH LIGHT PANEL 36" $32.22
6 S97018077 GREASE FILTER SET (CONTAINS 2) $108.90
  S97018088 CHARCOAL FILTER KIT (2 FILTERS & 8 CLIPS) $60.44
7 S97018078 VENTURI RING $7.85
8 S97018079 B LOWER WHEEL $41.99
9 S97018080 MOTOR KIT (INCLUDES MOUNTING HARDWARE) $176.22
10 S97017728 Damper / Duct Connector (includes mounting hardware) $15.30
11 S97018081 LH LIGHT PANEL 30" $26.35
11 S97018082 LH LIGHT PANEL 36" $32.22
12 S97018083 LAMP SOCKET $16.20
13 SV05921 LED (LED MR16, GU10, Base 50 W) $32.40
  S99526707 Suction Cup Tool (for assistance in light bulb install/removal) $27.26
14 S97018085 BOTTOM PANEL 30" $146.00
14 S97018086 BOTTOM PANEL 36" $162.49
  S97019895 LIGHT PANEL KIT FOR 30" WIDE HOODS - INCLUDES BOTH LIGHT PANELS $57.94
  S97019896 LIGHT PANEL KIT FOR 36" WIDE HOODS - INCLUDES BOTH LIGHT PANELS $72.99
  S99527366 OBE1212 SRV LIGHT DIODE $2.03
