Broan 771 Exhaust Fan 70 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

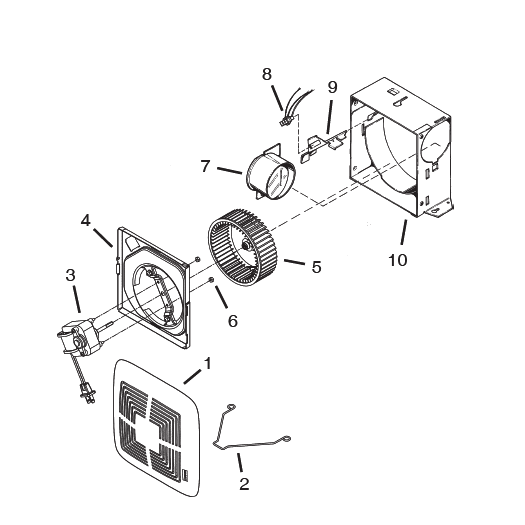

Broan 771 Exhaust Fan 70 Cfm Parts
Broan 771 Exhaust Fan 70 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $1.48
1S97017421 Grille w/ springs 771 (9 x 9.25) $10.19
2S99140187 Grille Spring- 2 Req.(g,h, j,k) 97017421grille $2.79
3S97017450 Blower Assembly F/771 $46.37
3S99080599 Motor F/771 Ccw $29.25
4S97017446 Plate F/771 $9.27
5S97016962 Wheel Ccw $2.45
7S97016377 Damper/Duct Connector F/ 771 only works with the E-J models $3.73
8S99271252 Black Receptacle With Ground Wire $4.00
9S98006773 Outlet Box Side F/D-Can $2.47
9S97008746 Wiring Panel Cover & Harness Assembly - Includes Receptacle Fan $4.93
10S97008319 Housing - 7-1/4" x 7-1/2" x 3-5/8" $12.17
