Broan 766BN Brushed Nickel Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 766BN Brushed Nickel Exhaust Fan Parts

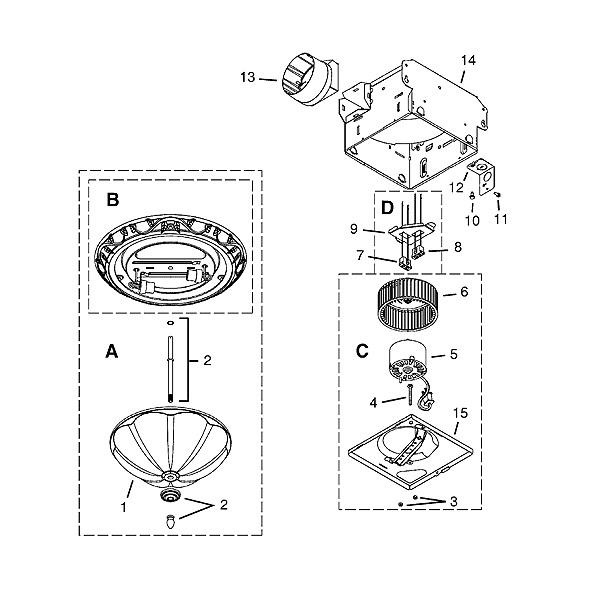

Broan 766BN Brushed Nickel Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
D  S97015171 Outlet Cover/Wire Panel Assy. (Includes Both Receptacles) $27.26
C  S97016671 Blower Assembly Modified replacment (Key #S 3 To 8)
This product has been discontinued
A  S97018134 Light Fixtureassembly Bn $202.10
B  S99391084 Grille Pan Assembly $151.20
1  S99527172 Glass Shade
This product has been discontinued
2  S97018142 Globe/Pan Mounting Hardware
This product has been discontinued
3  S99260558 Nut #8-32 For Attaching Motor $18.00
4  S99250959 Washers #8 X .625 4-Required $18.00
5  S99100491 Motor Grommet (3 Required) $27.26
6  S99150583 Grille Screw $18.00
7  97016722 Motor Modified - #JA2C55 ccw 1/4 d 1 1/4length $95.74
8  S99020276 Plastic Blower Wheel
This product has been discontinued
9  S99270981 Light Receptacle, White $27.26
10  S99270982 Receptacle - Black $18.00
11  S98009612 Outlet Cover/Wire Panel (Without Receptacles) $18.00
12  S99150471 Screw, #10-32 x 1/2" Hex Washer Head $18.00
13  S99170245 Screw, #8-18 x 3/8" $18.00
14  S98008868 Electrical Knockout Plate ** $18.00
15  S97014185 4" Damper/Duct Connector $27.26
16  S97014922 Housing F/J Can $34.78
17  S97016630 Partition $9.61
