Broan 763604 Stainless Steel Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 763604 Stainless Steel Range Hood Parts

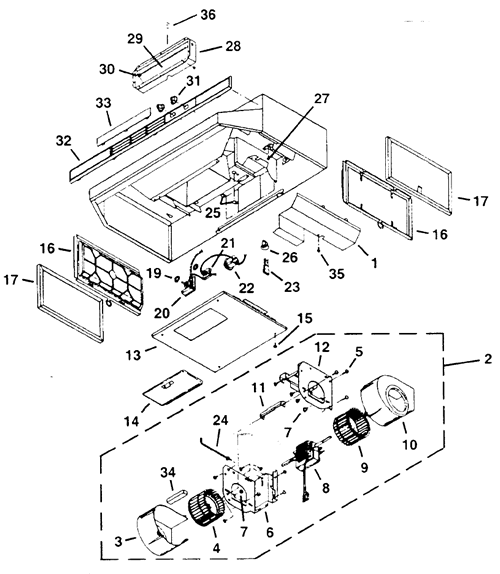

Broan 763604 Stainless Steel Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S97005543 Parts Bag (Contains 4 Wood Screws # 10-16 X 7/8") $27.26
0 HCK44 Cord Kit with 6' cord and plug $20.70
  S97007333 Plastic Scroll 76000, Old Style $19.03
  S99020141 Blower Wheel 76000 CCW, Old Style, 2 1/2" Tall x 3 3/8" wide
This product has been discontinued
  S99100518 Foam Pad on Bottom Cover Plate $4.72
1 S98006574 Outlet Box Cover - 76000-C Thru G, $3.94
2 S97009721 Complete Blower Assembly - 76000,
This product has been discontinued
3 S99110518 Plastic Scroll CCW-76000-B Thru G, $59.22
4 S99020150 Blower Wheel CCW-76000-B Thru G,
This product has been discontinued
7 S99100497 Rubber Insolators - 4 Required $27.26
8 S99080136 Motor - 76000 (Not for B Thru G, NLA replaced by 97009721) $0.00
8 S99080156 Motor - 76000-B Thru G, $181.80
9 S99020149 Blower Wheel CW-76000-B Thru G,
This product has been discontinued
10 S99110519 Plastic Scroll CW-76000-B Thru G,
This product has been discontinued
13 S97007953 Bottom Cover-White - 76000-C Thru G
This product has been discontinued
13 S97007954 Bottom Cover-Coffee - 76000-C Thru G,
This product has been discontinued
13 S97007955 Bottom Cover-Avocado - 76000-C Thru G,
This product has been discontinued
13 S97007956 Bottom Cover-Harvest - 76000-C Thru G,
This product has been discontinued
13 S97007957 Bottom Cover-Almond - 76000-C Thru G,
This product has been discontinued
13 S97009771 Bottom Cover-Black - 76000-C Thru G,
This product has been discontinued
14 S97013316 Light Lens (3 5/8 x 7.5 lens)
This product has been discontinued
16 S97007664 Non-Ducted filter Kit (2 Pack) 6 5/8 x 11 3/4-non ducted
This product has been discontinued
16 S97008537 Non-Ducted Filter Kit (2 Pack) - 76000, 76000-B, 11 5/8 x 5 7/8
This product has been discontinued
17 S97007893 Aluminum Filter Kit (Contains 2 Filters)6 5/8 x 11 5/8 alumin $44.10
20 S97007159 Fan Switch $133.48
21 S97005328 Light Switch $27.26
22 S99270530 Light Socket $27.26
24 S99420458 Blower Mounting Rod $4.93
28 S97005544 Damper Assembly 3-1/4" X 10" $33.84
31 S600348 Knob in Black, Sold Individually $27.26
31 S600349 Knob in White, Sold Individually $27.26
32 S99090606 Black Nameplate 30" - 76000-C Thru G,
This product has been discontinued
32 S99090613 Black Nameplate 24" - 76000-C Thru G, $9.16
32 S99090778 White Nameplate 30" - 76000-C Thru G,
This product has been discontinued
32 S99090779 White Nameplate 36",42" - 76000-C Thru G, $12.87
33 S99090628 Black Louver Cover - 76000-C Thru G, $18.00
33 S99090781 White Louver Cover - 76000-C Thru G, $3.64
34 S99100441 Foam Piece - 2 Required (Included with 97007664) $27.26
