Broan 757SN Fan/Light Exhaust Fan Satin Nickel Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 757SN Fan/Light Exhaust Fan Satin Nickel Parts

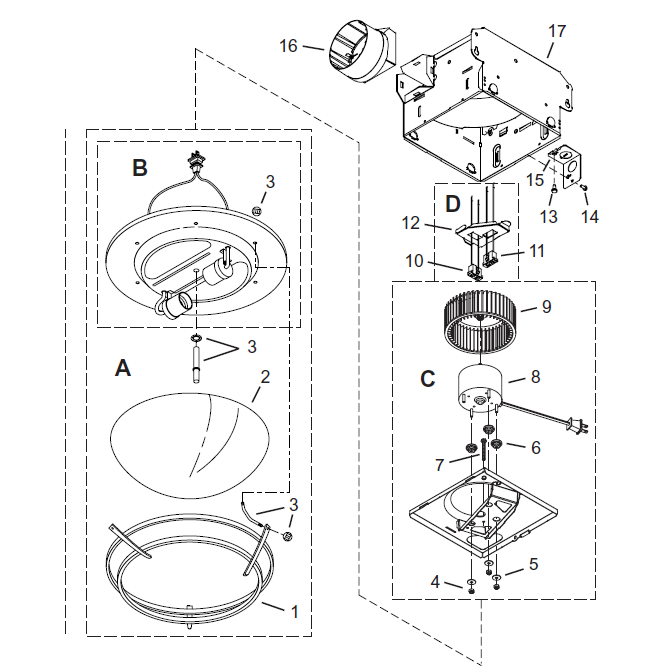

Broan 757SN Fan/Light Exhaust Fan Satin Nickel Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99150471 Ground Screw $1.51
AS99525323 Light Fixture F/757Sn
CS97016671 Blower F/756,757 $84.26
DS97015171 Outlet Cover/Wire Panel Assy. (Includes Both Receptacles) $9.77
3S99150618 Grille Mounting Screw $1.69
3S97016717 Hardware Parts F/757Sn
4S97016630 Motor Mounting Bracket $6.21
5S99250959 Motor Mounting Washer $1.53
5S99260558 Motor Mounting Nut $1.51
6S97016714 Glass Globe F/757 Models $22.52
6S99100491 Rubber Motor Isolator, 4-Required $2.47
8S97016722 Motor F/756, 757 $52.04
9S99020276 Plastic Blower Wheel $4.91
10S99270981 Light Receptacle, White $4.00
11S99270982 Receptacle - Black $4.00
12S98009612 Outlet Cover/Wire Panel (Without Receptacles) $1.67
15S98008868 Electrical Knockout Wiring Plate $2.32
16S97014185 4" Damper/Duct Connector $6.32
