Broan 755 Fan/Light Brown 70 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

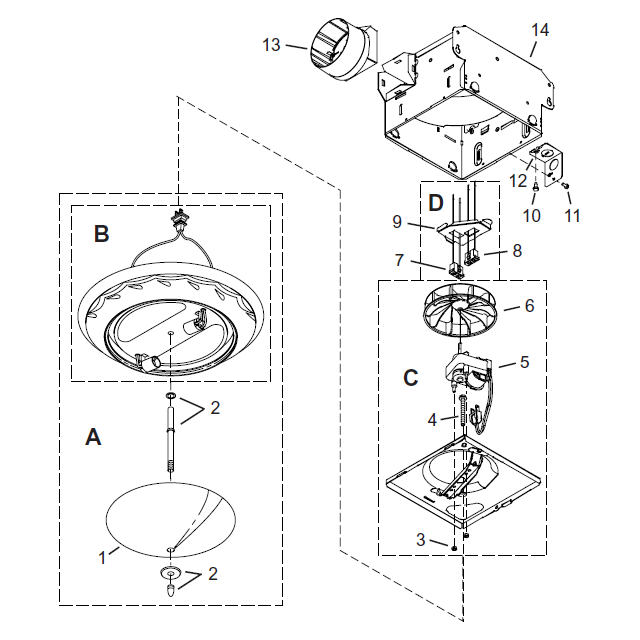

Broan 755 Fan/Light Brown 70 Cfm Parts breakout large

Part Key	Part Number	Description	Unit Price
B	S97016705	Assy Grille Pan F/755	$54.76
C	S97015312	Blower Assembly (Key #'S 3 To 6)	$70.50
D	S97015171	Outlet Cover/Wire Panel Assy. (Includes Both Receptacles)	$27.26
2	S97016706	Hardware Parts F/755 This product has been discontinued
5	S99080522	Motor	$41.20
6	S99110446	Wheel For Exhaust Fan	$18.00
7	S99270981	Light Receptacle, White	$27.26
8	S99270982	Receptacle - Black	$18.00
9	S98009612	Outlet Cover/Wire Panel (Without Receptacles)	$18.00
12	S98008868	Electrical Knockout Wiring Plate	$18.00
13	S97014185	4" Damper/Duct Connector	$27.26
	S99150618	Grille Mounting Screw	$18.92
	S97014926	Motot Mounting Bracket	$30.60
	S99260428	Motot Mounting Nut	$18.00
	S99150471	Ground Screw	$18.00
	S99170245	Knockout Plate Mounting Screw	$18.00
	S99260425	Motor Mounting Nut (2 Required & Sold Individually)	$2.40
