Broan 744LED Bathroom Exhaust W/ Can Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

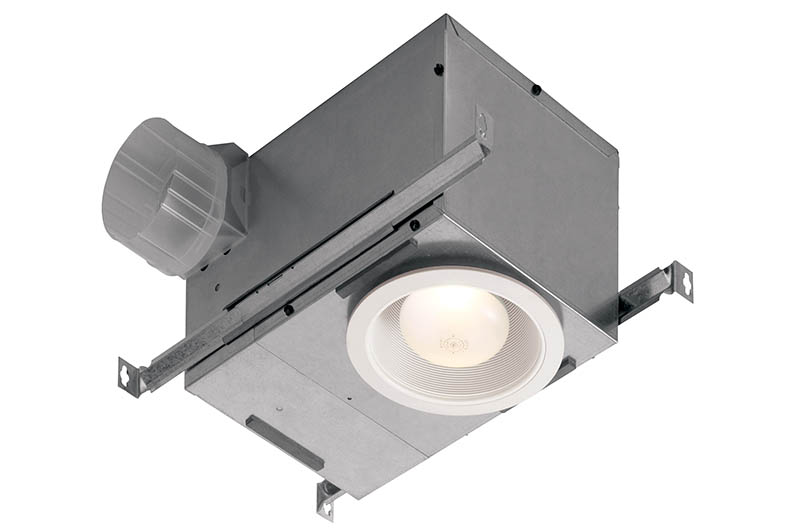

Broan 744LED Bathroom Exhaust W/ Can Light Parts
Broan 744LED Bathroom Exhaust W/ Can Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
* 744LED Complete New Unit
This product has been discontinued
8 S97018937 lamp bracket for GU24 bulb
This product has been discontinued
  S98010583 Electrical Box Cover $27.26
1 S97014185 4" Damper/Duct Connector $27.26
2 S98003036 Mounting Bracket (4 Req.) $27.26
3 S98005512 Wiring Adapter Plate $27.26
4 S99524804 Wheel $16.22
5 S99524805 Motor Mounting Bracket $6.50
7 S99080557 Motor A
This product has been discontinued
7 S97020054 Motor & Motor Mounting Bracket-B
This product has been discontinued
7 S1101122 BLOWER ASSEMBLY - INCLUDES MOTOR, BLOWER WHEEL, & MOUNTING BRACKET $68.62
8 S99420551 Plastic Clip F/7N RD HDS $27.26
8 S98011010 Lamp Bracket-B $8.08
9 S97019028 Lamp Bracket Assembly-B (Includes Key #'s 8-11)
This product has been discontinued
10 S99528893 Round Trim Ring with springs A,B,C (Was S99524802) $27.26
11 S99525160 Spring for Trim Ring - 2 Required A,B,CV $27.26
12 S99271458 14 Watt Dimable LED Lamp (Aversion) $44.82
  S99271540 14 watt br30 Gu24 (B, C version) $79.90
  S1102429 LAMP SOCKET ASSEMBLY - INCLUDES MOUNTING BRACKET (B, C version)
This product has been discontinued
