Broan 744FL Exhaust Fan W/Fluorescent Light Parts

Listed below are the parts available for this model.

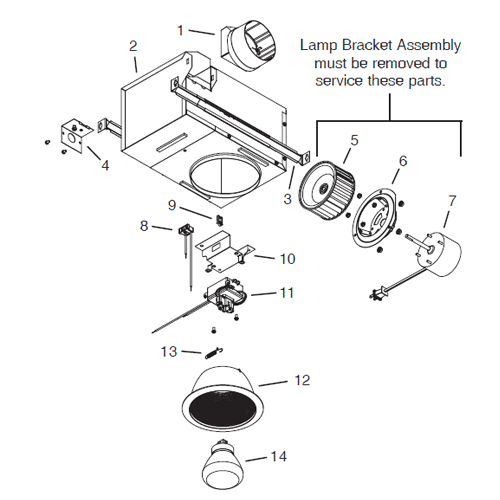

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 744FL  Exhaust Fan W/Fluorescent Light Parts
Broan 744FL  Exhaust Fan W/Fluorescent Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  744FL New production Complete Unit
This product has been discontinued

1 S97014185 4" Damper/Duct Connector $27.26
3 S98003036 Mounting Bracket (4 req.) $27.26
4 S98010583 Electrical Box Cover $27.26
4 S98005512 Wiring Adapter Plate $27.26
5 S99524804 Wheel $16.22
6 S99524805 Motor Mounting Bracket $6.50
7 S97016454 Motor/Motor Bracket Assembly (Key #'s 6 & 7) (C VERSION)
This product has been discontinued

7 S1101122 BLOWER ASSEMBLY - INCLUDES MOTOR, BLOWER WHEEL, & MOUNTING BRACKET $68.62
7 S99080557 Motor SEE S1101122
This product has been discontinued

8 S99271323 Female Receptacle $27.26
9 S99420551 Plastic Clip F/7N RD HDS $27.26
10 S98010900 Bracket For Light Socket(VERSION C) $9.40
11 S97018937 Light Socket Assembly (VERSION B/C)
This product has been discontinued

11 S97019016 Lamp Bracket Assembly (Key #'s 8 thru 11) VERSION A-1 LEFT
This product has been discontinued

10 S97016853 Lamp Bracket (2 pin)
This product has been discontinued

12 S99528893 Round Trim Ring with springs (was S99524802) (VERSION A,B,C) $27.26
13 S99525160 Spring for Trim Ring, 2-Required (VERSION A,B,C) $27.26
14 S97016848 Flourescent Lamp 14W, R30, GX24Q-1 Base 4 pin A-version $23.65
14 S97016848-LED LED Alternative 12W G24Q 4 pin (Replaced Florescent) A version $28.00
14 S99271448 Flourescent Lamp 16W, R30, GX24Q-1 Base 2 pin (b,cVERSION) $22.07
